Verto Truss H40R Length

Catalog number: VER-H40R-L100
Item code:

The Verto truss is based on a new principle of truss connection, where the sections are joined by a rotating coupler system. This system has great advantages over existing systems. The name Verto is derived from Latin, meaning to turn or to turn around and that is exactly how this coupler works.

Download
Verto Truss H40R product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Verto Truss H40R Length

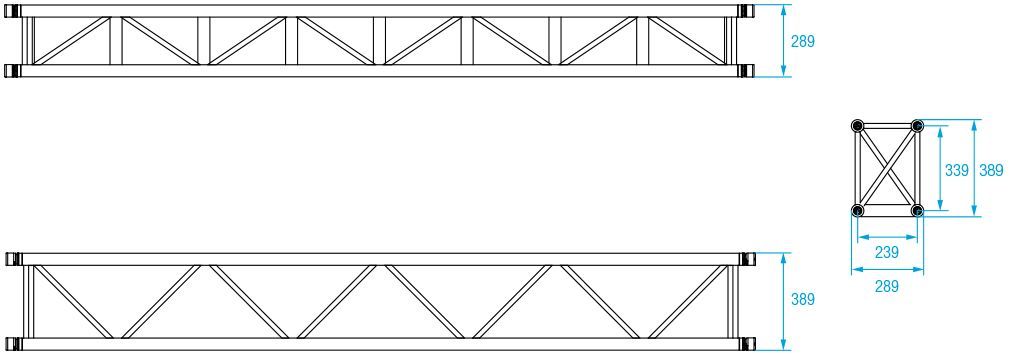

Technical Specifications - Ver-H40R Series
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal Members 20 x 2 mm
Coupling System Verto, CrMo4

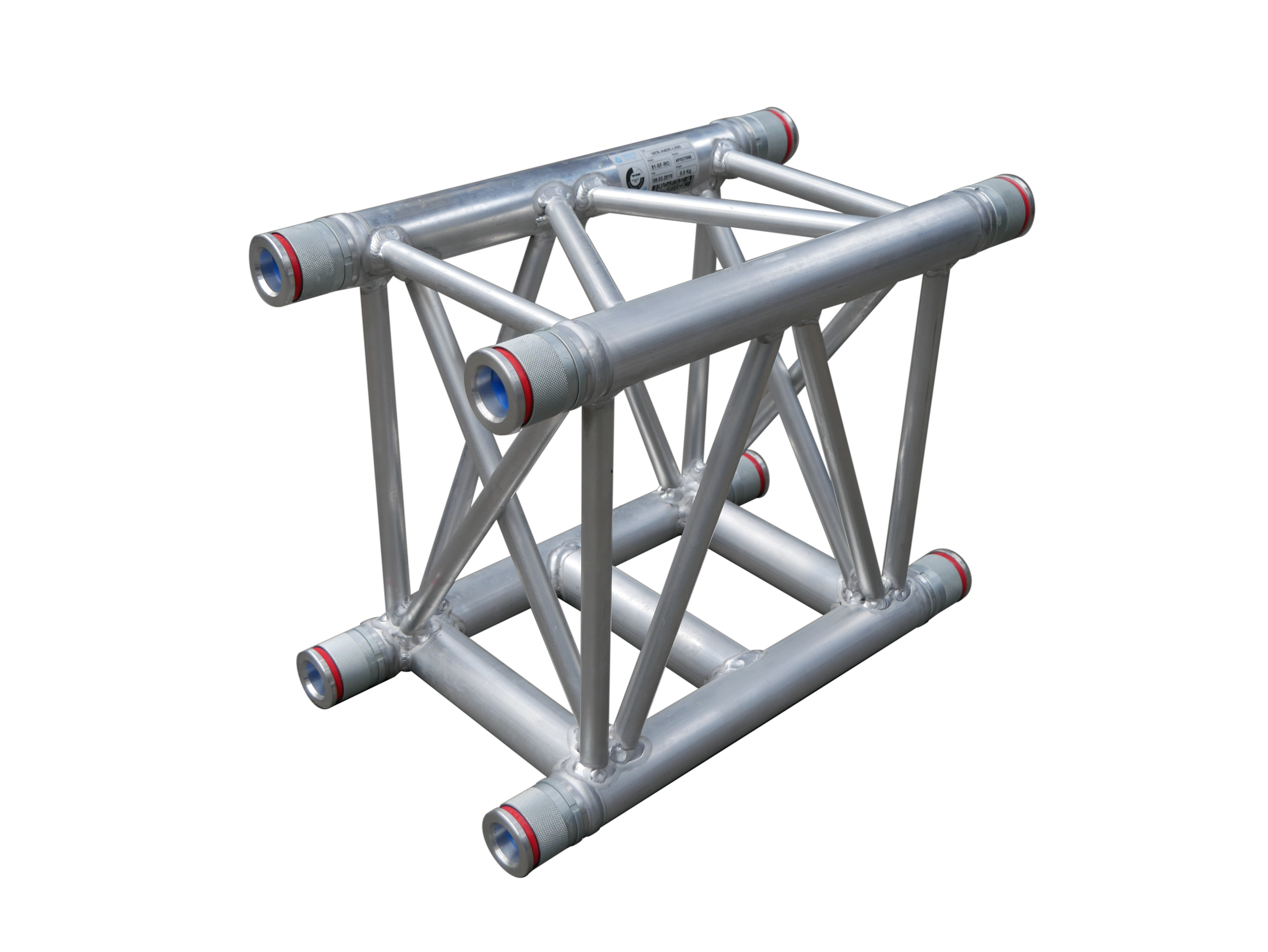

The Verto truss is based on a new principle of truss connection, where the sections are joined by a rotating coupler system. This system has great advantages over existing systems. The name Verto is derived from Latin, meaning to turn or to turn around and that is exactly how this coupler works. A simple flick of your wrist will connect the truss sections. The Verto truss is designed as an additional system, for those circumstances where its specific characteristics come into play, like the silent connection and reduced assembly time. Its structure resembles that of the standard H40V truss. Verto H40 Series truss is constructed of main chords (48 x 3 mm) and diagonal members (20 x 2 mm). Equipped with the Verto coupling system, the Verto H40 truss is fast and easy to assemble. The H40V offers extra strength compared to the Verto-H30V, next to its flexible application possibilities and is the ideal solution for the event or exhibition market.
  • Tool-less system, no tools needed for assembly and disassembly
  • No protruding parts, ideal for attaching banners or drapes
  • Bringing safety to the work floor – its silent connection adds greatly to work floor communication
  • Incredible fast connection and disconnection, reducing production time
  • Strong and compact, based on the H40V truss with similar loading capacity
  • Coupling parts can be replaced, prolonging the general lifetime of your truss
  • Versatile system with many application possibilities, the additional box corner completes the system
