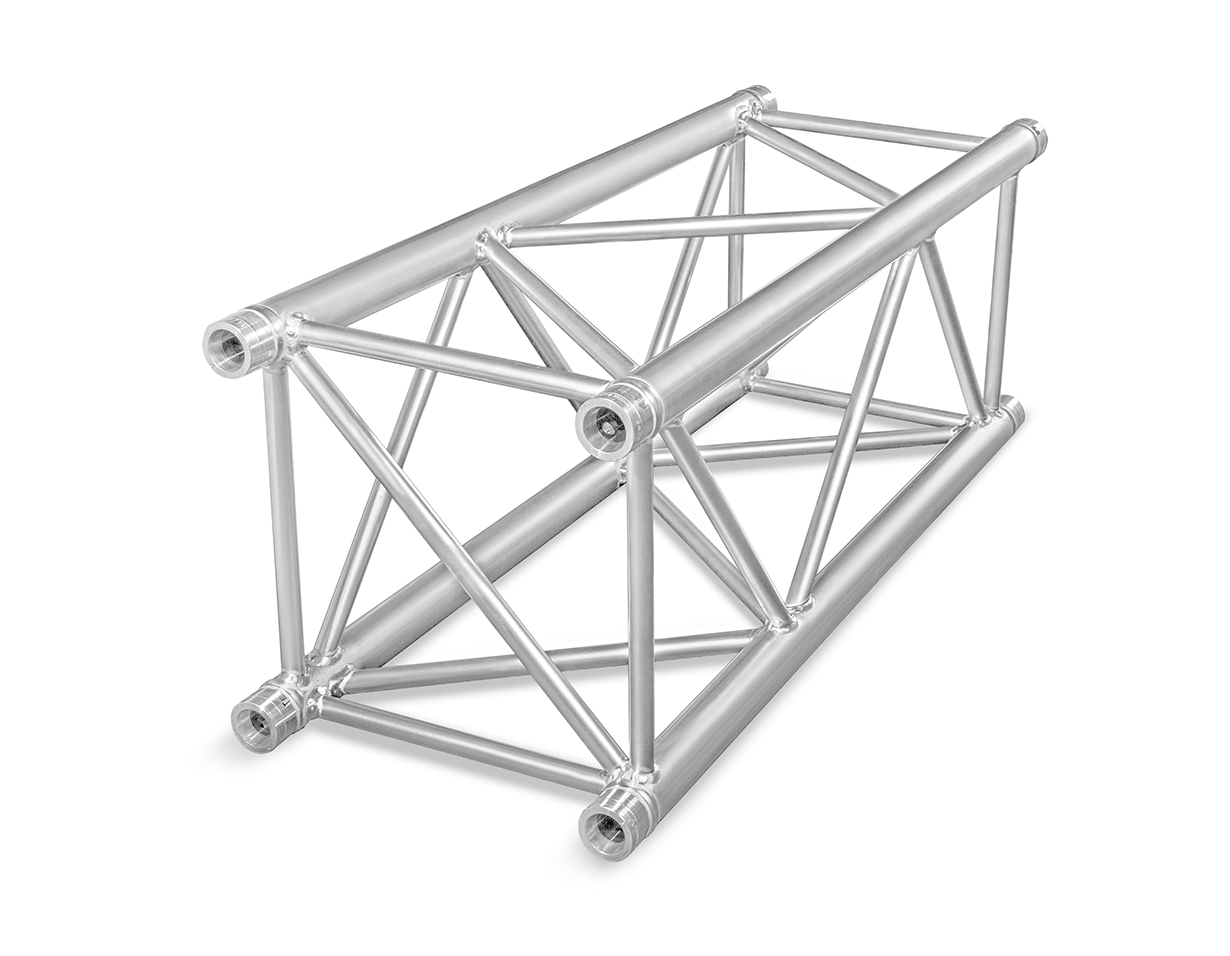

H40V Square Truss Length

Catalog number: H40V-L100
Item code: 111050192

H40 Series truss is constructed of main chords (48 x 3 mm) and diago­nal member (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
H40V Square Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40V Square Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 3,40 7.50 H40V-L025 111050163
0,50 1,90 4,70 10.36 H40V-L050 111050172
0,75 2,46 6,30 13.89 H40V-L075 111050183
0,81 2,65 6,70 14.77 H40V-L081 111050185
1,00 3,28 8,10 17.86 H40V-L100 111050192
1,50 4,92 11,00 24.25 H40V-L150 111050199
2,00 6,56 13,90 30.64 H40V-L200 111050203
2,50 8,20 17,70 39.02 H40V-L250 111050207
3,00 9,84 20,80 45.86 H40V-L300 111050210
4,00 13,12 26,80 59.08 H40V-L400 111050222
Other Lengths available on request
Technical Specifications - H40 Series
Alloy EN AW 6082 T6
Main Tubes 48 x 3 mm
Braces 20 x 2 mm
Coupling System CCS6


H40V - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

835,4

562,1

7

0,3

2198,9

4853,1

6

0,2

1253,2

2765,8

835,4

1843,8

626,6

1382,9

20,7

4

13,1

625,0

420,6

13

0,5

1712,4

3779,2

10

0,4

1215,1

2681,7

833,4

1839,3

625,0

1379,5

27,6

5

16,4

498,8

335,6

20

0,8

1435,8

3168,9

16

0,6

994,0

2193,8

815,2

1799,1

623,5

1376,0

34,5

6

19,7

414,6

279,0

29

1,1

1234,4

2724,4

23

0,9

851,7

1879,7

676,0

1492,0

529,7

1169,0

41,4

7

23,0

354,5

238,5

40

1,6

1080,9

2385,6

32

1,2

753,5

1663,0

585,0

1291,2

462,0

1019,6

48,3

8

26,2

277,5

186,7

52

2,0

959,8

2118,3

41

1,6

674,7

1489,0

514,7

1136,0

409,1

902,8

55,2

9

29,5

218,0

146,7

65

2,6

861,7

1901,7

52

2,1

609,9

1346,1

458,7

1012,3

366,4

808,7

62,1

10

32,8

175,4

118,0

81

3,2

780,4

1722,3

65

2,5

555,7

1226,4

412,9

911,3

331,2

731,0

69,0

11

36,1

143,9

96,8

98

3,8

711,8

1570,9

78

3,1

509,5

1124,6

374,7

827,0

301,7

665,8

75,9

12

39,4

119,9

80,7

116

4,6

653,1

1441,4

93

3,7

469,7

1036,7

342,3

755,5

276,5

610,2

82,8

13

42,6

101,2

68,1

137

5,4

602,2

1328,9

109

4,3

435,0

960,0

314,4

693,9

254,7

562,1

89,7

14

45,9

86,4

58,2

158

6,2

557,5

1230,3

127

5,0

404,3

892,3

290,1

640,3

235,6

519,9

96,6

15

49,2

74,5

50,1

182

7,2

517,9

1143,0

146

5,7

377,0

832,1

268,8

593,1

218,7

482,7

103,5

16

52,5

64,7

43,5

207

8,1

482,5

1064,9

166

6,5

352,5

778,0

249,8

551,2

203,7

449,6

110,4

17

55,8

56,6

38,1

234

9,2

450,7

994,7

187

7,4

330,4

729,2

232,7

513,7

190,2

419,7

117,3

18

59,0

49,8

33,5

262

10,3

421,8

931,0

210

8,3

310,3

684,8

217,4

479,7

178,0

392,8

124,2

19

62,3

44,1

29,7

292

11,5

395,5

872,8

233

9,2

291,9

644,1

203,4

448,9

166,8

368,2

131,1

20

65,6

39,2

26,4

323

12,7

371,3

819,5

259

10,2

274,9

606,7

190,7

420,8

156,6

345,7

138,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy assembly
  • Light weight system
  • World wide availability
  • Versatile application
  • Cross bracing
  • 4-point noding
