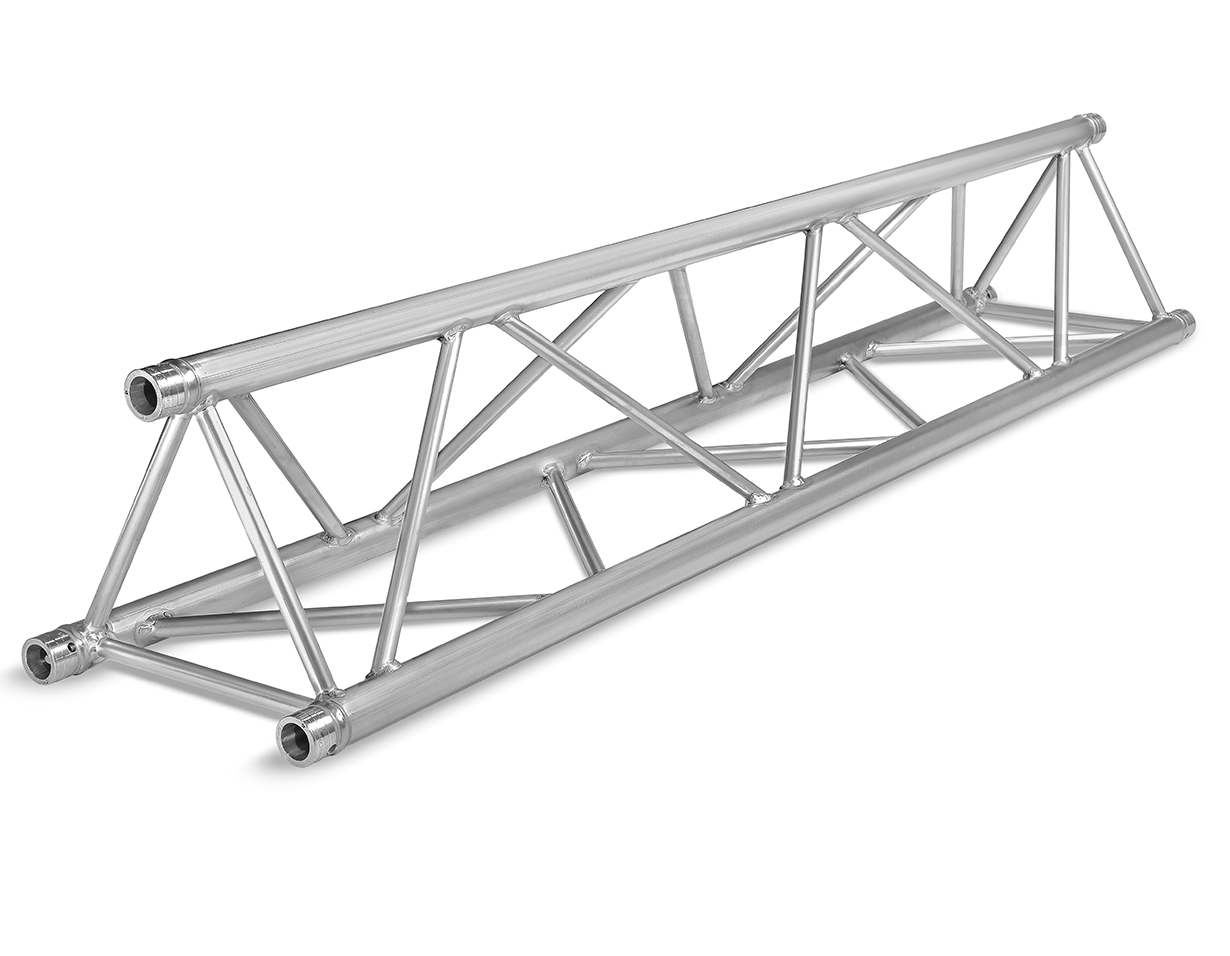

H40D Triangular Truss Length

Catalog number: H40D-L100
Item code: 111050132

H40 Series truss is constructed of main chords (48 x 3 mm) and diago­nal members (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
H40D Triangular Trus​s product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40D Triangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 2,35 5.18 H40D-L025 111050126
0,50 1,64 3,30 7.28 H40D-L050 111050128
0,75 2,46 4,34 9.57 H40D-L075 111050481
0,81 2,65 4,70 10.36 H40D-L081 111050131
1,00 3,28 5,70 12.57 H40D-L100 111050132
1,50 4,92 8,10 17.86 H40D-L150 111050133
2,00 6,56 10,20 22.49 H40D-L200 111050134
2,50 8,20 13,10 28.88 H40D-L250 111050135
3,00 9,84 15,10 33.29 H40D-L300 111050136
3,50 11,48 17,40 38.36 H40D-L350 111050138
4,00 13,12 20,00 44.09 H40D-L400 111050139
4,50 14,76 22,40 49.38 H40D-L450 111050141
5,00 16,40 24,40 53.79 H40D-L500 111050142
Other Lengths available on request
Technical Specifications - H40 Series
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal Members 20 x 2 mm
Coupling System CCS6
H40D - Allowable Loading​


MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

724,4

487,4

9

0,4

1048,3

2313,5

8

0,3

715,6

1579,4

581,4

1283,2

451,7

996,8

15,0

4

13,1

487,6

328,1

17

0,7

824,1

1818,9

13

0,5

573,8

1266,3

446,7

985,8

352,4

777,8

20,0

5

16,4

310,4

208,9

26

1,0

677,3

1494,8

21

0,8

477,8

1054,6

361,7

798,2

288,3

636,3

25,0

6

19,7

214,2

144,1

38

1,5

573,4

1265,4

30

1,2

408,5

901,5

303,0

668,8

243,3

536,9

30,0

7

23,0

156,2

105,1

51

2,0

495,7

1094,1

41

1,6

355,9

785,4

260,0

573,8

209,9

463,2

35,0

8

26,2

118,5

79,8

64

2,5

435,3

960,7

53

2,1

314,5

694,1

226,9

500,9

184,0

406,0

40,0

9

29,5

92,7

62,4

85

3,3

386,8

853,8

68

2,7

281,0

620,2

200,7

443,0

163,3

360,4

45,0

10

32,8

74,2

50,0

104

4,1

347,0

765,8

84

3,3

253,3

558,9

179,3

395,8

146,3

323,0

50,0

11

36,1

60,6

40,8

126

5,0

313,5

691,9

101

4,0

229,8

507,3

161,5

356,5

132,1

291,6

55,0

12

39,4

50,2

33,8

150

5,9

284,9

628,9

120

4,7

209,8

463,0

146,4

323,1

120,1

265,0

60,0

13

42,6

42,1

28,3

176

6,9

260,2

574,3

141

5,6

192,3

424,5

133,4

294,3

109,6

241,9

65,0

14

45,9

35,7

24,0

205

8,1

238,5

526,4

164

6,5

177,0

390,6

122,0

269,2

100,5

221,7

70,0

15

49,2

30,5

20,5

235

9,3

219,3

484,0

188

7,4

163,3

360,5

111,9

247,1

92,4

203,9

75,0

16

52,5

26,3

17,7

267

10,5

202,1

446,0

214

8,4

151,1

333,5

103,0

227,3

85,1

187,9

80,0

17

55,8

22,7

15,3

302

11,9

186,6

411,7

241

9,5

140,0

309,0

94,9

209,5

78,6

173,5

85,0

18

59,0

19,8

13,3

338

13,3

172,4

380,6

271

10,7

129,9

286,8

87,6

193,4

72,7

160,5

90,0

19

62,3

17,3

11,6

377

14,8

159,5

352,1

302

11,9

120,7

266,3

81,0

178,7

67,3

148,5

95,0

20

65,6

15,2

10,2

417

16,4

147,6

325,8

334

13,1

112,1

247,5

74,9

165,2

62,3

137,5

100,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy assembly
  • Light weight system
  • World wide availability
  • Versatile application
