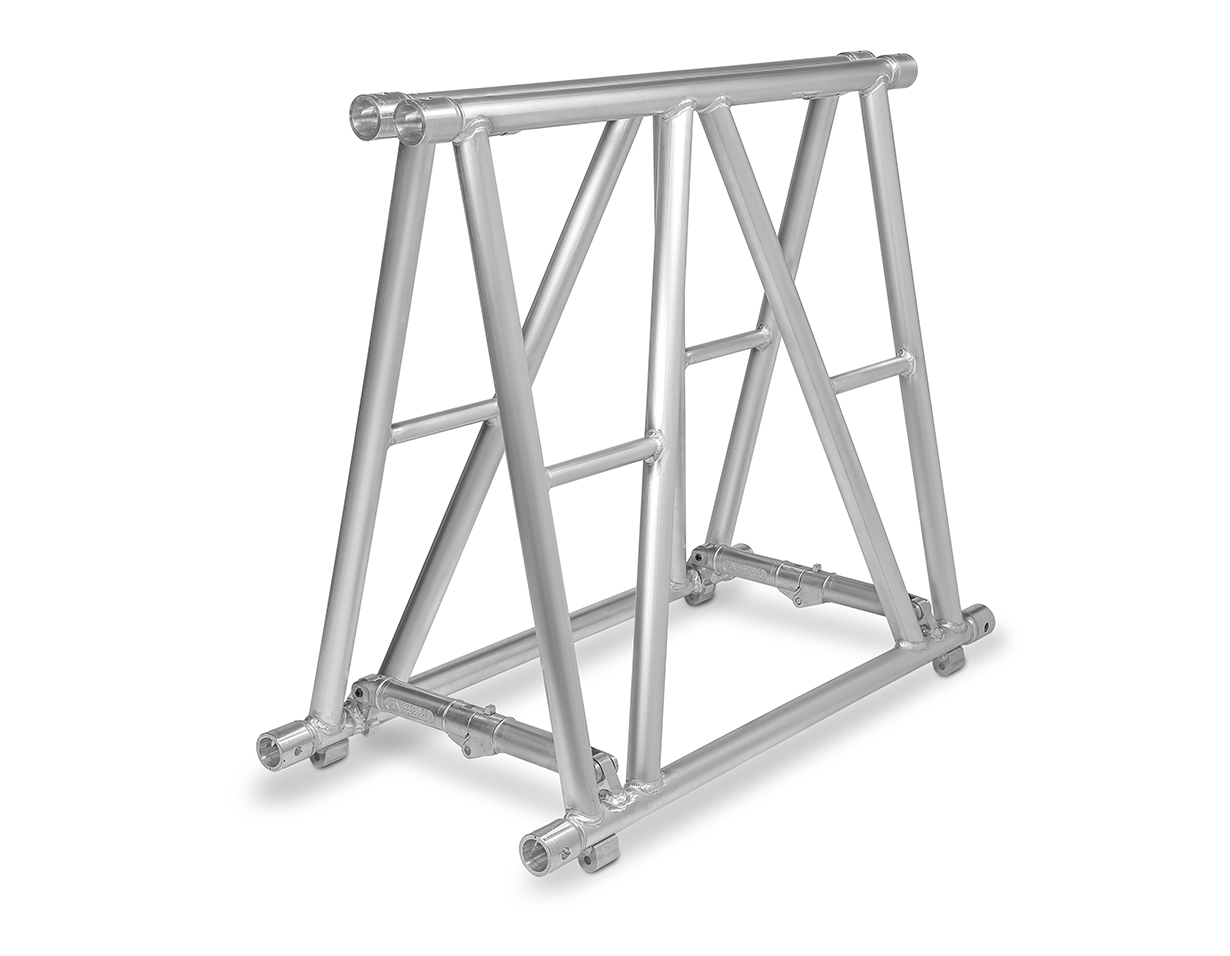

S100F Folding Truss Length

Catalog number: S100F-L100
Item code: 111110031

S100F truss is constructed of main chords (50 x 4 mm) and diagonal members (48 x 3 mm). Equipped with the CCS7 conical coupling system, the S100F truss is fast and easy to assemble. Its foldable design can safe up to 75% truck or warehouse space, while the smart placing of the hinges prevents personal injuries. The S100F is suited for vertical loading only. Clever spigot pin orientation makes the assembly fool proof. S100F truss is available in several lengths and a range of corners and accessories.

Download
S100F Folding Truss product data sheet

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S100F Folding Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,74 2,43 15,80 34.83 S100F-L074 111110029
0,80 2,62 22,00 48.50 S100F-L080 111110030
1,20 3,94 25,50 56.22 S100F-L120 111110032
2,40 7,87 41,10 90.61 S100F-L240 111110034
Other Lengths available on request



Technical Specifications - S100F Series
Alloy EN AW 6082 T6
Main chords 50 x 4 mm
Diagonal Members 48 x 3 mm
Coupling System CCS7


S100F - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

2,4

7,9

828,9

557,7

2

0,1

2023,7

4466,3

1

0,1

1011,8

2233,1

674,6

1488,8

505,9

1116,6

42,7

4,8

15,7

427,3

287,5

7

0,3

1932,9

4265,9

5

0,2

1002,9

2213,4

668,6

1475,6

499,7

1102,7

85,4

7,2

23,6

285,5

192,1

15

0,6

1608,2

3549,3

12

0,5

993,9

2193,6

662,6

1462,4

493,4

1088,9

128,2

9,6

31,5

209,1

140,7

27

1,1

1438,5

3174,8

21

0,8

985,0

2173,8

656,6

1449,2

487,1

1075,1

170,9

12,0

39,4

169,4

114,0

42

1,6

1301,3

2872,0

33

1,3

976,0

2154,0

650,7

1436,0

480,9

1061,3

213,6

14,4

47,2

139,7

94,0

60

2,4

1237,4

2730,9

48

1,9

928,1

2048,2

618,7

1365,5

474,6

1047,5

256,6

16,8

55,1

115,0

77,4

82

3,2

1124,0

2480,8

66

2,6

843,0

1860,6

562,0

1240,4

468,4

1033,6

299,0

19,2

63,0

96,8

65,1

107

4,2

1031,6

2276,8

86

3,4

773,7

1707,6

515,8

1138,4

429,8

948,7

341,8

21,6

70,8

79,5

53,5

136

5,3

929,8

2052,1

109

4,3

697,3

1539,0

464,9

1026,0

387,4

855,0

384,5

24,0

78,7

67,7

45,6

167

6,6

812,8

1793,9

134

5,3

609,6

1345,4

406,4

896,9

338,7

747,4

427,2

26,4

86,6

58,3

39,2

203

8,0

790,7

1745,0

162

6,4

593,0

1308,8

395,3

872,5

329,4

727,1

469,9

28,8

94,5

52,2

35,1

241

9,5

728,1

1606,9

193

7,6

546,1

1205,2

364,0

803,4

303,4

669,5

512,6

31,2

102,3

44,0

29,6

283

11,1

644,0

1421,4

226

8,9

483,0

1066,1

322,0

710,7

268,4

592,3

555,4

33,6

110,2

38,0

25,6

328

12,9

569,9

1257,8

263

10,3

427,4

943,4

285,0

628,9

237,5

524,1

598,2

36,0

118,1

32,7

22,0

360

14,2

547,4

1208,1

301

11,9

410,5

906,1

273,7

604,1

228,1

503,4

641,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy to assemble
  • The foldable design saves space
  • Clever spigot pin orientation
