LSU series - LSU curved

Catalog number:
Item code:

Building your LED screen from ground level is now easy, whatever your type of screen is, Prolyte offers a universal solution, the LED Stack system. This combination of a base-unit, connection bar and ladder truss, creates a very stable system to support you LED screens in various configurations and offers flexibility in height as well as width.

A side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quick and easy. By using longer connection bars, you can easily extend your screen with another row of panels. Using the adjustable feet in the front and back of the base-unit, you can safely level the system, so your screen is completely straight.

Available base unit
·    PC-LSU-BASE-L100-RAL9005
Available ladder truss lengths
·    PC-LSU-30L-L050-RAL9005
·    PC-LSU-30L-L075-RAL9005
·    PC-LSU-30L-L100-RAL9005
Available connection bar lengths
·    PC-LSU-CONNB-L100-025-RAL9005 1m length 2,5dgr
·    PC-LSU-CONNB-L150-025-RAL9005 1,5m length 2,5dgr
·    PC-LSU-CONNB-L100-050-RAL9005 1m length 5dgr
·    PC-LSU-CONNB-L150-050-RAL9005 1,5m length 5dgr
·    PC-LSU-CONNB-L100-075-RAL9005 1m length 7,5dgr
·    PC-LSU-CONNB-L150-075-RAL9005 1,5m length 7,5dgr
·    PC-LSU-CONNB-L100-100-RAL9005 1m length 10dgr
·    PC-LSU-CONNB-L150-100-RAL9005 1,5m length 10dgr
Available LED panel adapters
·    PC-LSU-ADAP-02-RAL9005, panel adapter no plate
·    PC-LSU-ADAP-03-RAL9005, panel adapter with M8-M12 bolts
·    PC-LSU-ADAP-04-025RAL9005, panel adapter for panels with M8-M12 bolts
·    PC-LSU-ADAP-04-050RAL9005, panel adapter for panels with M8-M12 bolts
·    PC-LSU-ADAP-04-075RAL9005, panel adapter for panels with M8-M12 bolts
·    PC-LSU-ADAP-04-100RAL9005, panel adapter for panels with M8-M12 bolts
Available support leg
·    PC-LSU-SUPP-90130-RAL9005 Adjustable leg 90-130cm

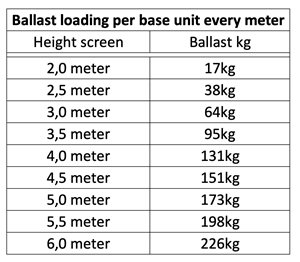

To prevent falling over of your led support system ballast is needed on every base unit (each meter). The amount of ballast is depending on the height of your screen. See figures below.
LSU-web1.jpg    LSU-web1-(1).jpg


The system can be build up untill 4 meters height without any lateral stabilisation and is calculated till the latest standards.

LSU series also comprises of three solutions to suspend your LED system; H40R, H40V-MB, S52SV- MB truss series all compatible with the regular truss series.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
LSU series - LSU curved
Technical specifications - LSU
Base unit 50x50mm profile
Coupling system

CCS6

Adjustable spindles M12
Ladder truss H30L with straight bracing 30x3mm
Connection bar 50x50x4 profile

All items standard coated black, RAL9005
  • side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quick and easy.
  • By using longer connection bars, you can easily extend you screen with another row of panels.
  • Using the adjustable feet in the front and back of the base-unit, you can safely level the system, so your screen is completely straight.
