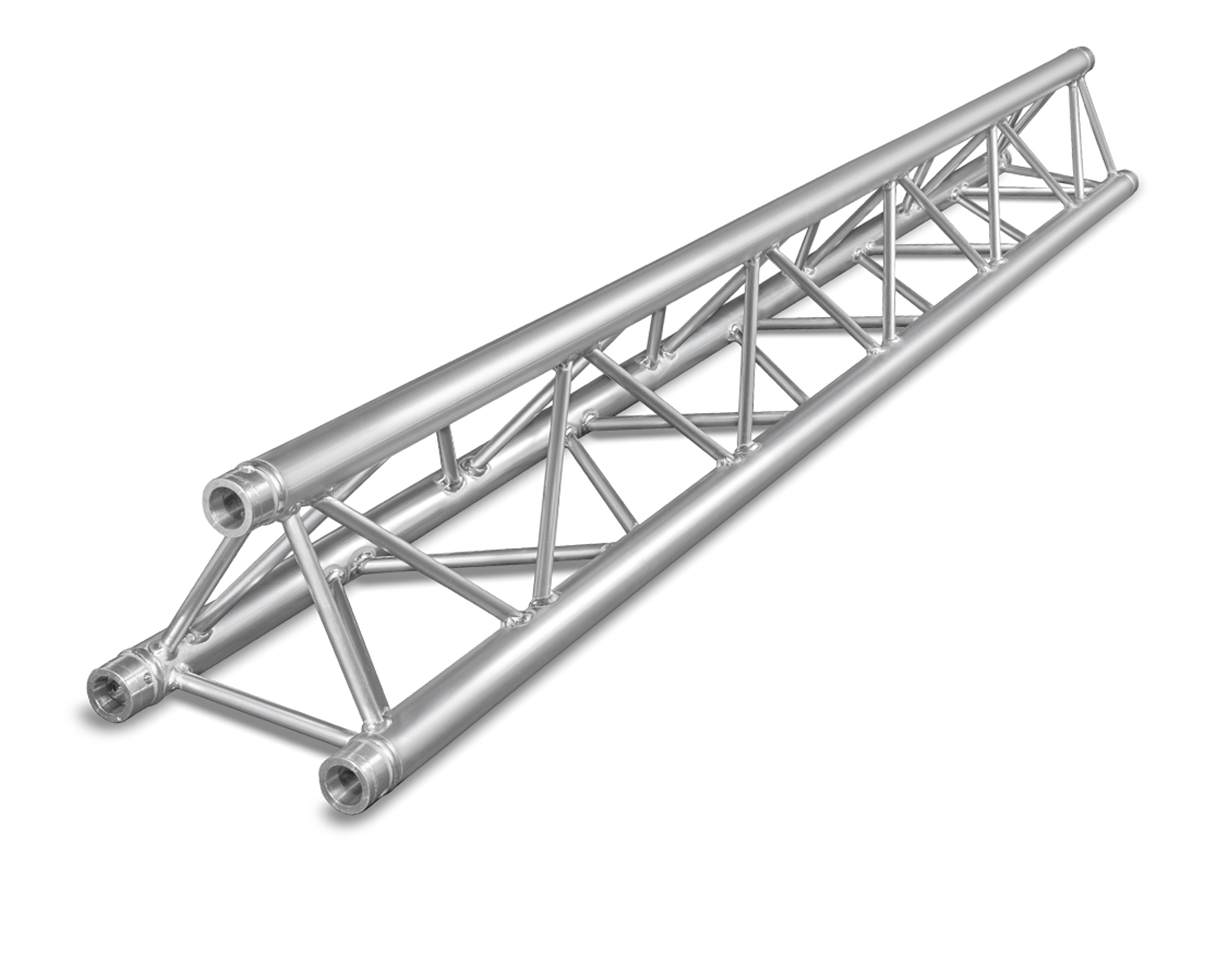

X30D Triangular Truss Length

Catalog number: X30D-L100
Item code: 111080041

X30 truss is constructed of main chords (51 x 2 mm) and diago­nal members (16 x 2 mm). Equipped with the CCS6 conical coupling system, the X30 truss is fast and easy to assemble. The X30 truss can be found in rental fleets all over the globe, where its low volume and flexible application possibilities makes it the ideal truss for exhibitions and low intensity rental jobs. X30 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
X30D Triangular Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
X30D Triangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0.25 0.82 1.90 4.19 X30D-L025 111080016
0.29 0.95 2.00 4.41 X30D-L029 111080018
0.50 1.64 2.70 5.95 X30D-L050 111080026
0.71 2.33 3.50 7.72 X30D-L071 111080032
0.75 2.46 3.70 8.16 X30D-L075 111080034
1.00 3.28 4.40 9.70 X30D-L100 111080041
1.50 4.92 6.10 13.45 X30D-L150 111080044
2.00 6.56 7.90 17.42 X30D-L200 111080049
2.50 8.20 9.50 20.94 X30D-L250 111080052
3.00 9.84 11.10 24.47 X30D-L300 111080059
4.00 13.12 14.50 31.97 X30D-L400 111080065
Other Lengths available on request
Technical Specifications - X30 Series
Alloy EN AW 6082 T6
Main Chords 51 x 2 mm
Diagonal Members 16 x 2 mm
Coupling System CCS6
X30D - Allowable Loading
      MAXIMUM ALLOWABLE POINT LOADS


Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

443,7

298,6

13

0,5

576,3

1272,0

10

0,4

405,2

894,3

308,9

681,7

245,6

542,1

11,4

4

13,1

248,1

166,9

23

0,9

444,8

981,8

19

0,7

317,5

700,6

234,6

517,7

188,6

416,3

15,2

5

16,4

157,6

106,0

36

1,4

360,8

796,3

29

1,1

260,1

574,1

188,3

415,6

152,5

336,6

19,0

6

19,7

108,4

72,9

52

2,1

302,2

667,0

42

1,7

219,5

484,5

156,6

345,7

127,5

281,4

22,8

7

23,0

78,7

53,0

71

2,8

258,9

571,4

57

2,2

189,2

417,6

133,5

294,6

109,1

240,7

26,6

8

26,2

59,5

40,0

93

3,7

225,4

497,4

75

2,9

165,6

365,4

115,7

255,4

94,9

209,4

30,4

9

29,5

46,3

31,1

118

4,6

198,6

438,2

94

3,7

146,6

323,5

101,6

224,3

83,6

184,4

34,2

10

32,8

36,8

24,8

146

5,7

176,6

389,7

117

4,6

130,9

289,0

90,1

198,9

74,3

163,9

38,0

11

36,1

29,8

20,1

176

6,9

158,1

348,9

141

5,6

117,7

259,9

80,5

177,7

66,5

146,8

41,8

12

39,4

24,5

16,5

210

8,3

142,3

314,0

168

6,6

106,4

234,9

72,3

159,7

59,9

132,1

45,6

13

42,6

20,4

13,7

246

9,7

128,6

283,8

197

7,8

96,6

213,2

65,3

144,1

54,1

119,5

49,4

14

45,9

17,1

11,5

285

11,2

116,5

257,2

228

9,0

87,9

194,1

59,1

130,4

49,1

108,3

53,2

15

49,2

14,5

9,7

328

12,9

105,8

233,6

262

10,3

80,2

177,1

53,6

118,2

44,6

98,4

57,0

16

52,5

12,3

8,3

373

14,7

96,2

212,3

298

11,7

73,3

161,7

48,6

107,4

40,6

89,6

60,8

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Available worldwide
  • Fast and easy assembly
  • Low volume
  • Versatile application
  • Ideal for exhibitons
