H30D Triangular Truss Length

Catalog number: H30D-L100
Item code: 111050014

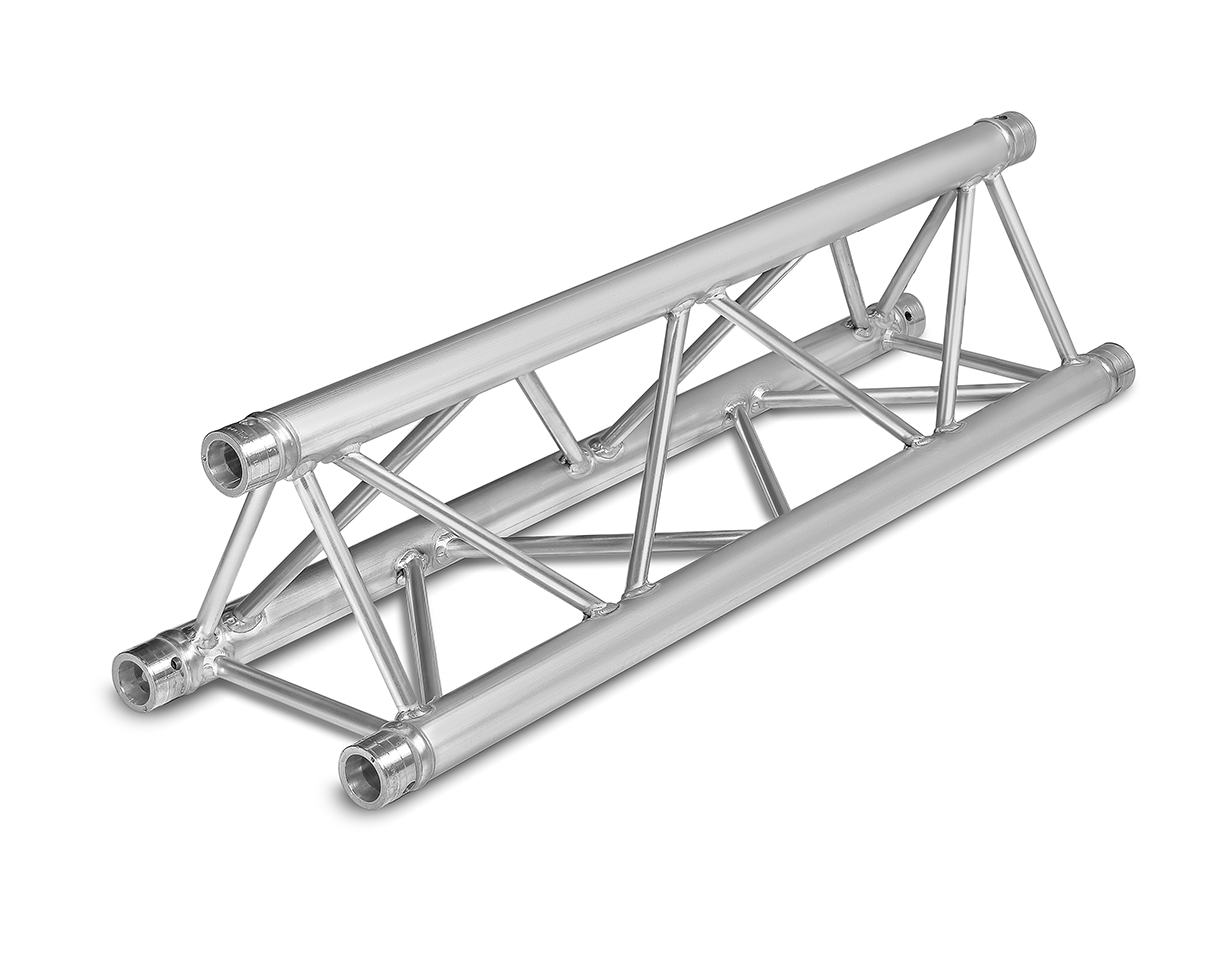

H30 Series truss is constructed of main chords (48 x 3 mm) and diago­nal members (16 x 2 mm). Equipped with the CCS6 conical coupling system, the H30 truss is fast and easy to assemble. The H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
H30D Triangular Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H30D Triangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 2,00 4.41 H30D-L025 111050002
0,29 0,95 2,90 6.39 H30D-L029 111050003
0,50 1,64 3,13 6.90 H30D-L050 111050006
0,71 2,33 3,90 8.60 H30D-L071 111050009
0,75 2,46 4,10 9.04 H30D-L075 111050011
1,00 3,28 5,10 11.24 H30D-L100 111050014
1,50 4,92 7,40 16.31 H30D-L150 111050019
2,00 6,56 9,27 20.44 H30D-L200 111050022
2,50 8,20 11,39 25.11 H30D-L250 111050024
3,00 9,84 13,51 29.78 H30D-L300 111050027
4,00 13,12 17,75 39.13 H30D-L400 111050030
Other Lengths available on request
Technical Specifications - H30 Series
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal Members 16 x 2 mm
Coupling System CCS6

H30D - Allowable Loading​



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

562,4

378,4

13

0,5

782,3

1726,6

11

0,4

546,6

1206,4

422,2

931,8

334,1

737,4

15,0

4

13,1

342,0

230,1

23

0,9

606,0

1337,5

19

0,7

430,3

949,7

321,3

709,2

257,4

568,1

20,0

5

16,4

217,3

146,2

37

1,5

492,8

1087,6

29

1,2

353,7

780,6

258,4

570,2

208,6

460,4

25,0

6

19,7

149,5

100,6

53

2,1

413,6

912,8

42

1,7

299,3

660,5

215,2

474,9

174,7

385,5

30,0

7

23,0

108,6

73,1

72

2,8

354,9

783,2

57

2,3

258,4

570,4

183,6

405,1

149,6

330,3

35,0

8

26,2

82,1

55,3

94

3,7

309,4

682,8

75

3,0

226,6

500,0

159,3

351,6

130,3

287,7

40,0

9

29,5

63,9

43,0

118

4,6

273,0

602,4

95

3,7

200,9

443,4

140,1

309,2

114,9

253,6

45,0

10

32,8

50,9

34,3

146

5,7

243,1

536,4

117

4,6

179,7

396,6

124,4

274,5

102,3

225,8

50,0

11

36,1

41,3

27,8

177

7,0

217,9

481,0

142

5,6

161,8

357,2

111,2

245,5

91,7

202,4

55,0

12

39,4

34,0

22,9

211

8,3

196,5

433,6

169

6,6

146,5

323,4

100,1

220,9

82,7

182,5

60,0

13

42,6

28,3

19,0

247

9,7

177,8

392,5

198

7,8

133,2

294,0

90,4

199,6

74,9

165,2

65,0

14

45,9

23,8

16,0

287

11,3

161,4

356,3

229

9,0

121,5

268,1

82,0

180,9

68,0

150,1

70,0

15

49,2

20,1

13,6

329

13,0

146,9

324,1

263

10,4

111,0

245,0

74,5

164,3

61,9

136,6

75,0

16

52,5

17,2

11,5

375

14,8

133,8

295,3

300

11,8

101,6

224,2

67,7

149,5

56,4

124,5

60,8

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy assembly
  • Light weight system
  • World wide availability
  • Versatile application
