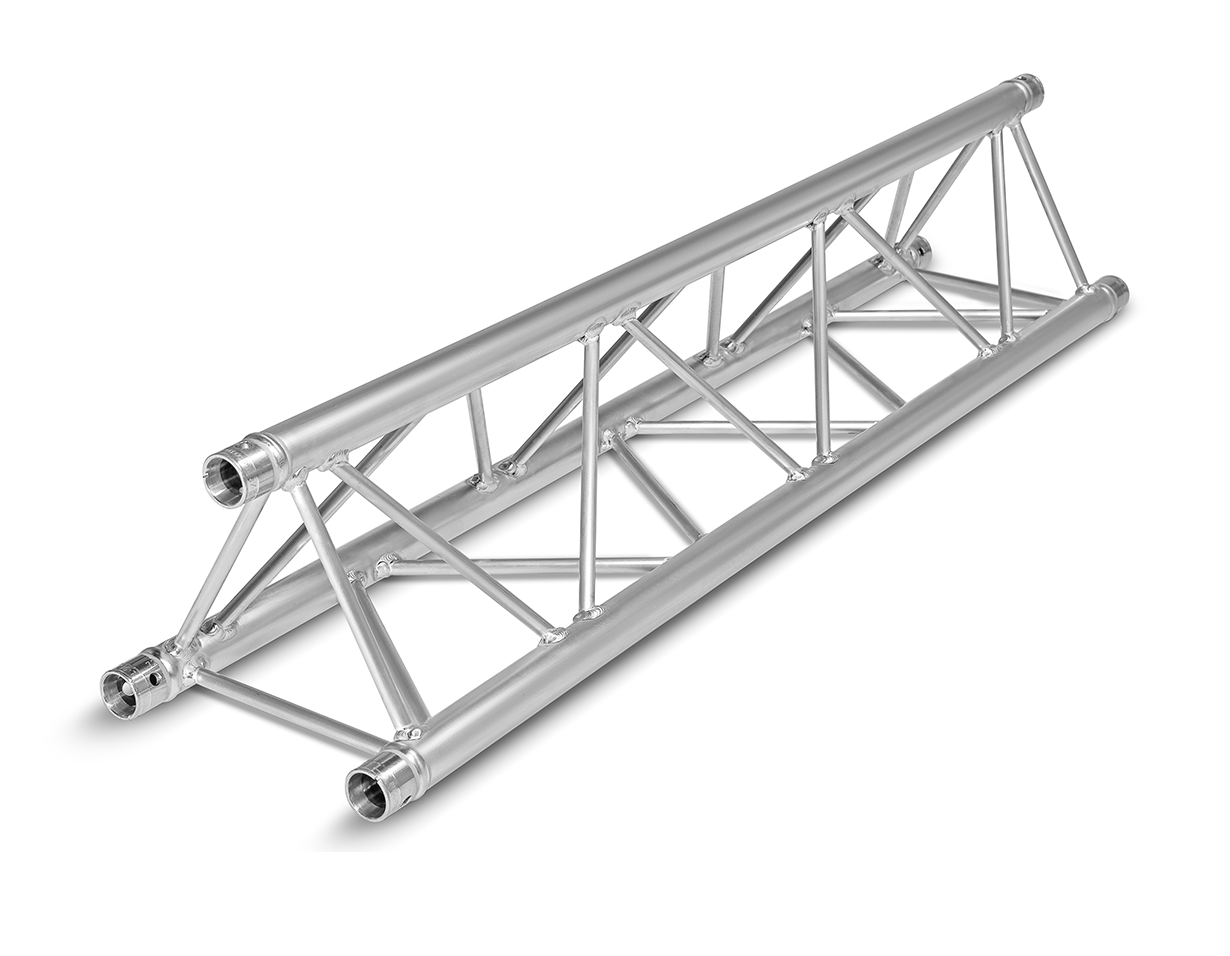

E20D Triangular Truss Length

Catalog number: E20D-L100
Item code: 111020015

The E20 is a small and aesthetically pleasing truss. Compact construction, optimum strength and high-tech appearance make this truss an appropriate decorative element with numerous applications. Equipped with the CCS4 conical coupling system, the E20 truss is fast and easy to assemble. E20 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
E20D Triangular Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
E20D Triangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 0,70 1.54 E20D-L025 111020002
0,50 1,64 1,00 2.20 E20D-L050 111020007
0,58 1,90 1,60 3.53 E20D-L058 111020008
0,75 2,46 1,40 3.09 E20D-L075 111020013
1,00 3,28 1,80 3.97 E20D-L100 111020015
1,50 4,92 2,60 5.73 E20D-L150 111020018
2,00 6,56 3,30 7.28 E20D-L200 111020021
2,50 8,20 4,10 9.04 E20D-L250 111020030
3,00 9,84 4,80 10.58 E20D-L300 111020032
4,00 13,12 6,50 14.33 E20D-L400 111020040
Other Lengths available on request
Technical Specifications - E20 Series
Alloy EN AW 6060 T5
Main Chords 32 x 1,5 mm
Diagonal Members 10 x 1,0 mm
Coupling System CCS4
E20D - Allowable Loading
      MAXIMUM ALLOWABLE POINT LOADS


Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

97,2

65,4

10

0,4

125,9

277,8

8

0,3

88,4

195,1

67,6

149,1

53,7

118,4

4,8

4

13,1

54,0

36,4

18

0,7

96,7

213,5

14

0,6

69,0

152,4

51,0

112,7

41,0

90,6

6,4

5

16,4

34,1

22,9

28

1,1

78,0

172,1

22

0,9

56,3

124,2

40,7

89,8

33,0

72,8

8,0

6

19,7

23,2

15,6

40

1,6

64,8

142,9

32

1,3

47,1

104,1

33,6

74,1

27,3

60,3

9,6

7

23,0

16,7

11,2

54

2,1

54,9

121,1

43

1,7

40,3

88,9

28,3

62,4

23,1

51,1

11,2

8

26,2

12,4

8,4

71

2,8

47,2

104,1

56

2,2

34,8

76,9

24,2

53,4

19,9

43,9

12,8

9

29,5

9,5

6,4

89

3,5

40,9

90,3

71

2,8

30,4

67,2

20,9

46,2

17,3

38,1

14,4

10

32,8

7,4

5,0

110

4,3

35,7

78,9

88

3,5

26,8

59,1

18,2

40,2

15,1

33,3

16,0

11

36,1

5,9

4,0

133

5,3

31,3

69,1

107

4,2

23,6

52,1

15,9

35,2

13,2

29,2

17,6

12

39,4

4,7

3,2

159

6,2

27,5

60,7

127

5,0

20,9

46,1

14,0

30,8

11,6

25,6

19,0

13

42,6

3,8

2,6

186

7,3

24,1

53,3

149

5,9

18,4

40,7

12,2

27,0

10,2

22,5

20,6

14

45,9

3,1

2,1

216

8,5

21,1

46,6

173

6,8

16,2

35,8

10,7

23,6

8,9

19,7

22,2

15

49,2

2,5

1,7

248

9,8

18,4

40,6

199

7,8

14,1

31,1

9,3

20,5

7,8

17,2

23,8

16

52,5

2,0

1,4

282

11,1

15,9

35,2

226

8,9

12,2

26,9

8,0

17,7

6,8

14,9

25,4

17

55,8

1,6

1,1

319

12,5

13,7

30,2

255

10,0

10,4

23,0

6,9

15,2

5,8

12,8

27,0

18

59,0

1,3

0,9

357

14,1

11,6

25,5

286

11,3

8,8

19,4

5,8

12,8

4,9

10,8

28,6

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Compact product
  • Great strength to weight ratio
  • No deflection in it's connection point
  • Hight tech appearance
  • Fast and easy to assemble
