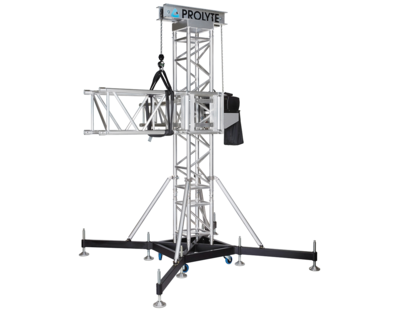

ST Tower
Catalog number: -
Item code:
112140010
The ST tower is based on S40T mast sections. These mast sections have one-sided horizontal bracing to facilitate safe and easy climbing of the towers, with the use of an appropriate fall protection system. The ST tower uses several sleeve blocks that combine all the trusses from the S and B Series. This makes it possible to fit any of the S Series trusses to all four sides by means of bolted female CCS7 couplers. The ST tower has a self-weight of 120 kg. The ST sleeve block is a fully bolted structural element, making it much stronger and more precise than conventional welded versions. The ST tower is a cost-effective investment. You need only purchase the special parts if you wish to expand your truss system with towers.
There is a structural relation between tower length and size. Additionally, the applied load and the method of restraining the tower base also contribute to determination of the total loading capacity. All these factors must be taken into consideration when determining the allowable load and tower length.
Prolyte ST Tower product sheet
Find a Local Dealer
Need help?
Need advice about one of our products or services? Find out on our
Prolyte Campus
page.
Contact us
Technical Specification
Advantages
Technical specifications - ST Tower
max. height
depends on structure and tower lenght
max. loading capacity
2000 kg**
sleeve block suitable for truss-series
S36R•V, S52F•V, S66R•V, S100F and
B100RV (with various sleeve blocks)
alloy alu parts
EN - AW 6082 T6
main tubes mast sections
50 x 4mm
braces mast sections
25 x 3mm
coupling system
CCS6 series
self weight
120kg
* To be used with chainhoist only.
** There is a structural relation between tower height and size, further the applied load and the method of restraining the tower base and top also have its influence on the total loading capacity. All these factors must be taken into consideration when determining the allowable load.
Possible to fit any of the S Series trusses to all four sides
The ST sleeve block is a fully bolted (strong and precise)
The ST tower is a cost-effective investment
