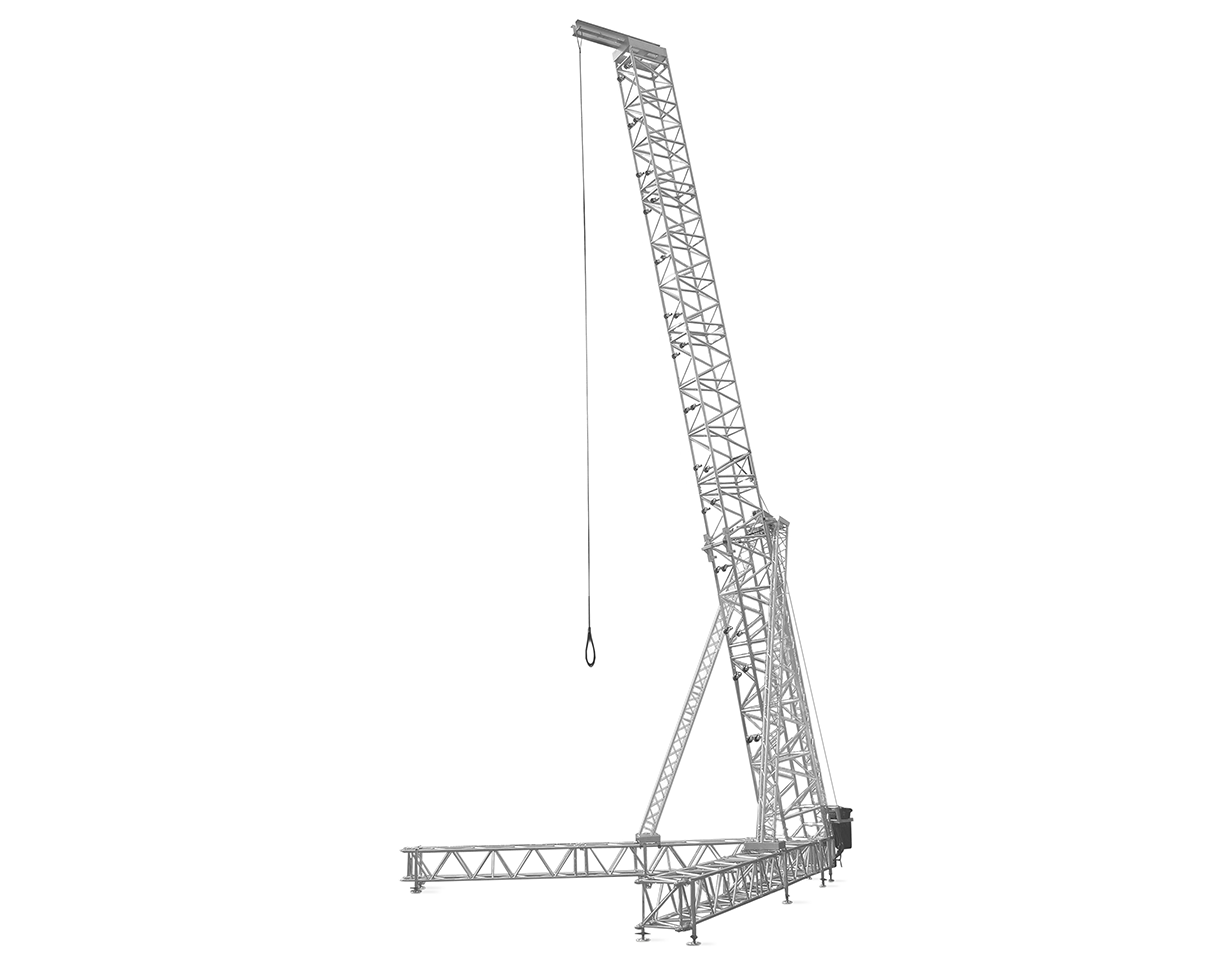

Rigging Tower B100RV
Catalog number: -
Item code:
112140017
The heavy-duty RT-B100RV has a loading capacity of 2300 kg and a maximum lifting height of 15,95 m. The RT-B100RV is based on B100RV truss with stabilisers of H30D truss. It has a self-weight of 695 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be built and erected using the hinges on the base. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted in position. The sturdy and stable RT-B100RV rigging tower is a safe and suitable solution for all sorts of settings, like outdoor events, major public gatherings, and large stadiums.
Download
Prolyte RT-B100RV product sheet
Find a Local Dealer
Need help?
Need advice about one of our products or services? Find out on our
Prolyte Campus
page.
Contact us
Technical Specification
Advantages
Technical specifications - RT - B100RV - 2,3Tff
max. overall height
16,22 m
max. lifting height
15,95 m
max. loading capacity
2300 kg (5060 lbs)
max. surface load front
11 m2
max. surface load side
5,5 m2
truss sections
B100RV / S52SV
stabiliser
H30D
coupling system
CCS7 series / CCS6 series
alloy alu parts
EN - AW 6082 T6
ballast
915 kg
max. windspeed
20,7 m/s (46.3 mph)
system weight
695 kg (1530 lbs)
The sturdy and stable RT-B100RV rigging tower is a safe and suitable solution for all sorts of settings, like outdoor events, major public gatherings, and large stadiums.
