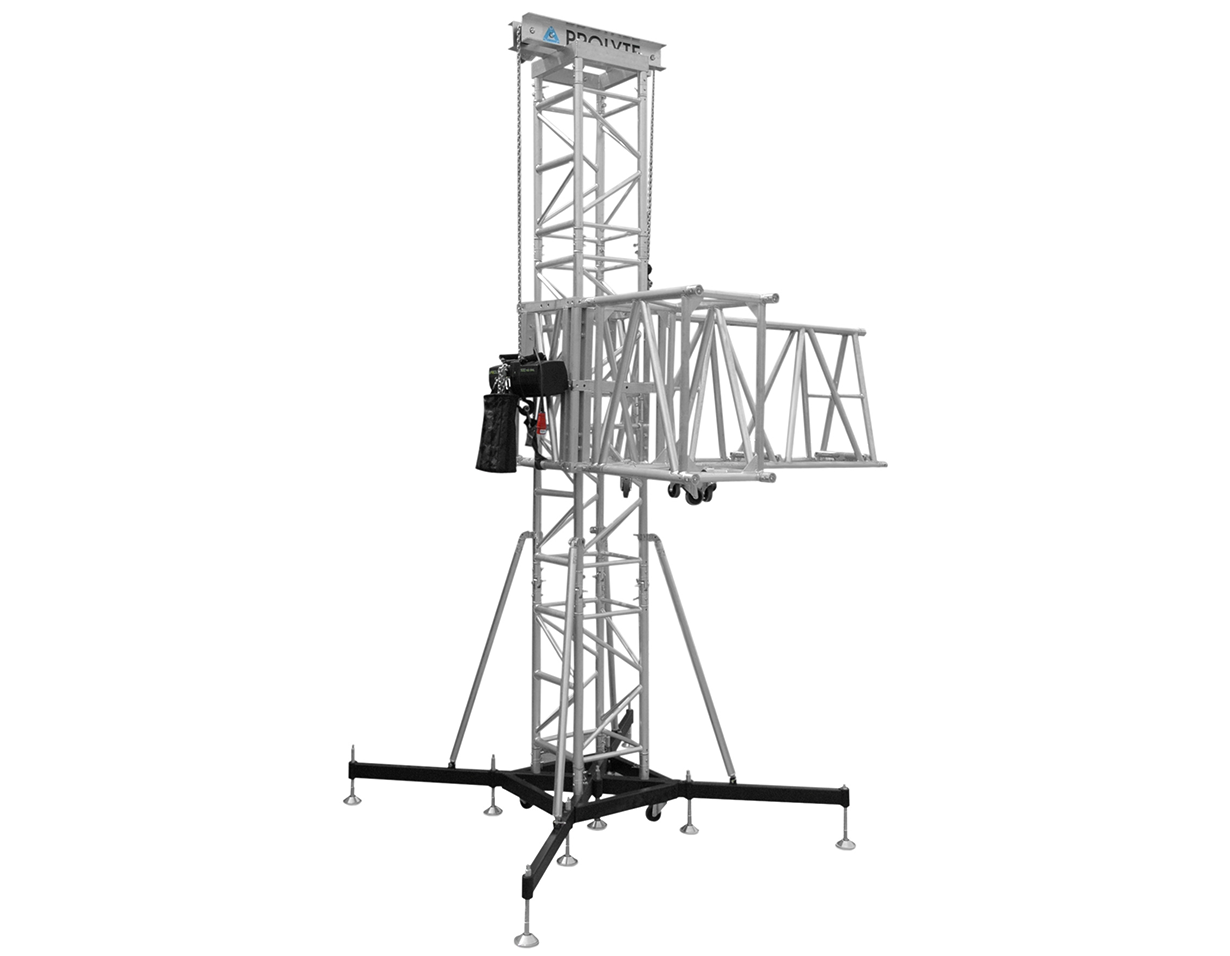

CT Tower
Catalog number: -
Item code:
112140011
The CT tower is based on C52T mast sections. These mast sections have onesided horizontal bracing to facilitate safe and easy climbing of the towers. C52T truss is constructed of main tubes of 60 x 5 mm and diagonals of 30 x 3/48 x 3 mm. Use the CCS7 coupling system with the CCS7-704 or CCS7-703-C52T shortened spigot pin. The base section of the CT tower is similar to the ST tower; the outside dimensions and setup are the same. Extra spindles are added to the base section to absorb the extra forces resulting from the tower’s higher loading capacity. Existing ST base sections can be upgraded to accommodate CT towers on request. The CT tower has a self-weight of 140 kg.
There is a structural relation between tower length and size. Additionally, the applied load and the method of restraining the tower base also contribute to determination of the total loading capacity. All these factors must be taken into consideration when determining the allowable load and tower length. The allowable load given is based on a uniformly distributed load (UDL). Load cases with several point loads can show much better loading capacities.
Prolyte CT Tower product sheet
Find a Local Dealer
Need help?
Need advice about one of our products or services? Find out on our
Prolyte Campus
page.
Contact us
Technical Specification
Advantages
Technical specifications CT Tower
max. overall height
20,00 m (other heights optional)
max. loading capacity
5000 kg**
sleeve block suitable for truss-series
S52F•V, S66R•V, S100F and B100RV (with various sleeve blocks)
alloy alu parts
EN-AW 6082 T6
coupling system
CCS7 series
* To be used with chainhoist only.
** There is a structural relation between tower height and size. the applied load and the method of restraining the tower base and top also have its influence on the total loading capacity.
You need only purchase the special parts to expand your truss system
The CT tower uses several sleeve blocks that combine all the trusses from the S and B Series. This makes it possible to fit almost all S Series trusses to all four sides by means of bolted female CCS7 couplers. The outside dimensions of the CT sleeve block are the same as the ST sleeve block; both can be combined in one grid
Fully bolted making it much stronger than conventional welded versions
