Verto Truss H30V Length

Catalog number: VER-H30V-L100
Item code: 111170006

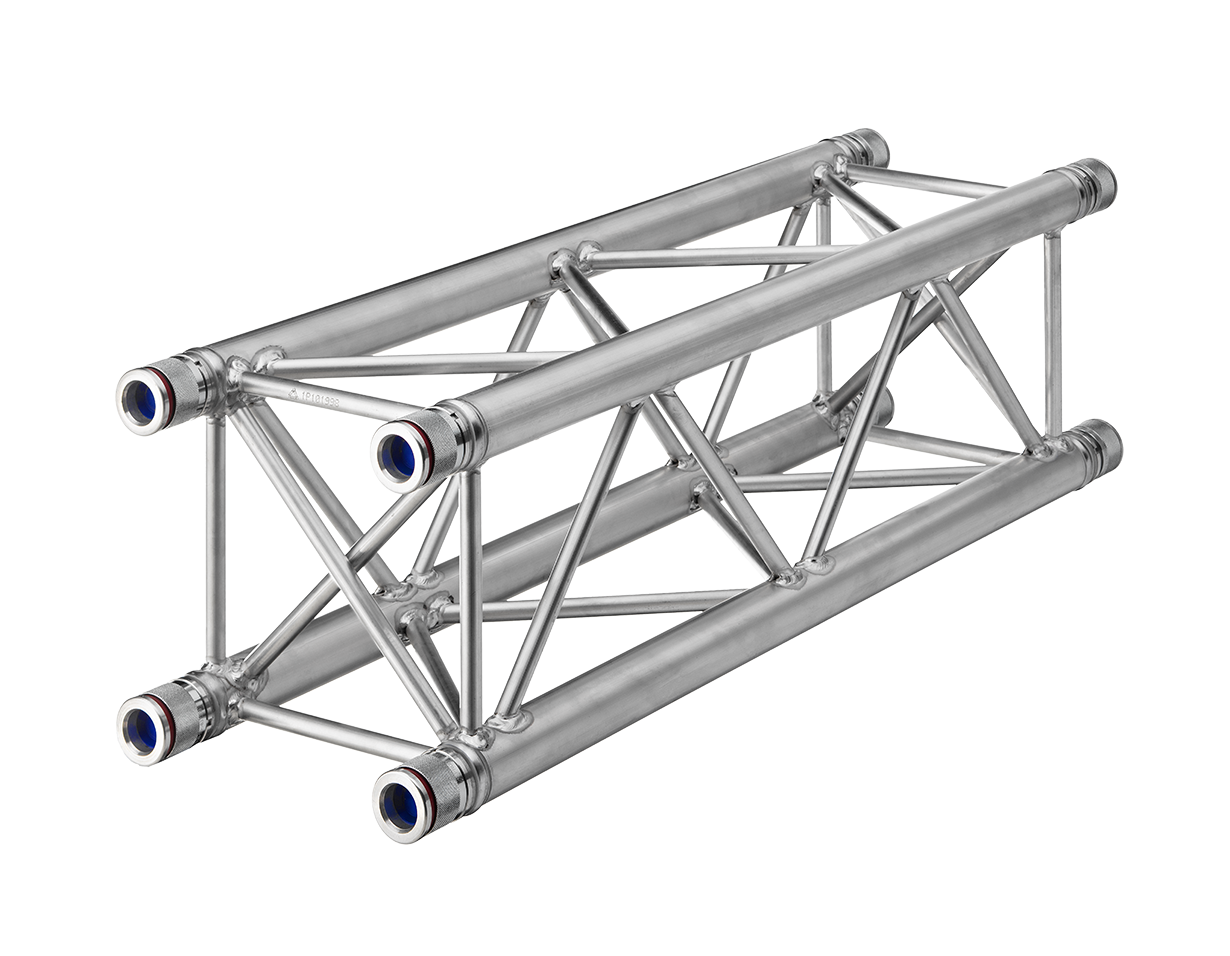

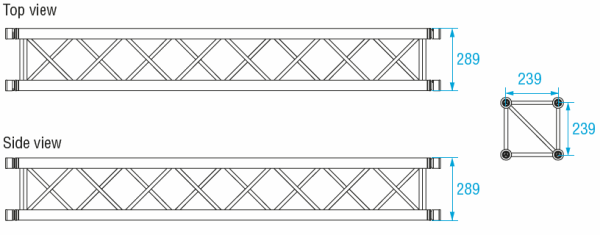

Verto H30 Series truss is constructed of main chords (48 x 3 mm) and diagonal members (16 x 2 mm). Equipped with the Verto coupling system, the Verto H30 truss is fast and easy to assemble. The Verto H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in a square profile and a range accessories.

Download
Verto Truss H30V product data sheet (rest of the world)

Verto Truss H30V product data sheet (US & Canada)

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Verto Truss H30V Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 2,50 5.51 VER-H30V-L025 111170001
0,29 0,95 2,70 5.95 VER-H30V-L029 111170003
0,50 1,64 3,90 8.60 VER-H30V-L050 111170004
0,71 2,33 5,10 11.24 VER-H30V-L071 111170005
1,00 3,28 6,80 14.99 VER-H30V-L100 111170006
1,50 4,57 9,70 21.38 VER-H30V-L100 111170007
2,00 6,56 12,50 27.56 VER-H30V-L200 111170008
2,50 8,20 15,30 33.73 VER-H30V-L250 111170009
3,00 9,84 18,20 40.12 VER-H30V-L300 111170010
4,00 13,20 23,90 52.69 VER-H30V-L400 111170011
Other Lengths available on request
Technical Specifications - Verto
Type VER-H30V
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal Members 16 x 2 mm
Coupling System Verto, CrMo4




VER-H30V - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

647,4

435,6

10

0,4

1557,0

3436,4

8

0,3

971,1

2143,3

647,4

1428,9

485,6

1071,6

21,4

4

13,1

483,8

325,5

18

0,7

1228,7

2711,7

15

0,6

862,4

1903,3

645,0

1423,6

483,8

1067,7

28,4

5

16,4

385,6

259,4

28

1,1

1025,0

2262,2

23

0,9

702,7

1550,8

565,7

1248,4

449,8

992,7

35,5

6

19,7

320,1

215,4

41

1,6

877,2

1935,9

33

1,3

609,1

1344,2

476,9

1052,6

375,4

828,5

42,6

7

23,0

254,1

170,9

56

2,2

764,6

1687,4

45

1,8

536,3

1183,6

411,1

907,3

326,1

719,7

49,7

8

26,2

192,8

129,7

73

2,9

675,8

1491,4

58

2,3

477,9

1054,8

360,2

794,9

287,4

634,4

56,8

9

29,5

150,8

101,5

92

3,6

603,7

1332,3

74

2,9

430,0

949,0

319,5

705,2

256,3

565,6

63,9

10

32,8

120,8

81,3

114

4,5

543,9

1200,3

91

3,6

389,8

860,2

286,2

631,6

230,5

508,7

71

11

36,1

98,6

66,3

137

5,4

493,3

1088,6

110

4,3

355,5

784,6

258,3

570,1

208,8

460,8

78,1

12

39,4

81,7

55,0

164

6,5

449,8

992,7

131

5,2

325,8

719,1

234,6

517,7

190,2

419,8

85,2

13

42,6

68,5

46,1

192

7,6

411,9

909,1

154

6,1

299,8

661,7

214,0

472,4

174,1

384,2

92,3

14

45,9

58,1

39,1

223

8,8

378,6

835,5

178

7,0

276,8

611,0

196,1

432,8

159,9

352,9

99,4

15

49,2

49,7

33,4

256

10,1

348,9

770,0

205

8,1

256,3

565,6

180,2

397,7

147,3

325,1

106,5

16

52,5

42,8

28,8

291

11,5

322,2

711,1

233

9,2

237,7

524,6

166,0

366,4

136,0

300,2

113,6

17

55,8

37,1

25,0

328

12,9

298,1

657,9

263

10,4

220,9

487,4

153,2

338,2

125,8

277,7

120,7

18

59,0

32,3

21,7

368

14,5

276,1

609,3

295

11,6

205,4

453,4

141,6

312,6

116,5

257,2

127,8

19

62,3

28,3

19,0

410

16,1

255,9

564,8

328

12,9

191,2

422,1

131,0

289,2

108,0

238,4

134,9

20

65,6

24,8

16,7

454

17,9

237,3

523,6

364

14,3

178,1

393,0

121,3

267,6

100,2

221,1

142

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Tool-less system, no tools needed for assembly and disassembly
  • No protruding parts, ideal for attaching banners or drapes
  • Bringing safety to the work floor – its silent connection adds greatly to work floor communication
  • Incredible fast connection and disconnection, reducing production time
  • Strong and compact, based on the H30V truss with similar loading capacity
  • Coupling parts can be replaced, prolonging the general lifetime of your truss
  • Versatile system with many application possibilities, the additional box corner completes the system
