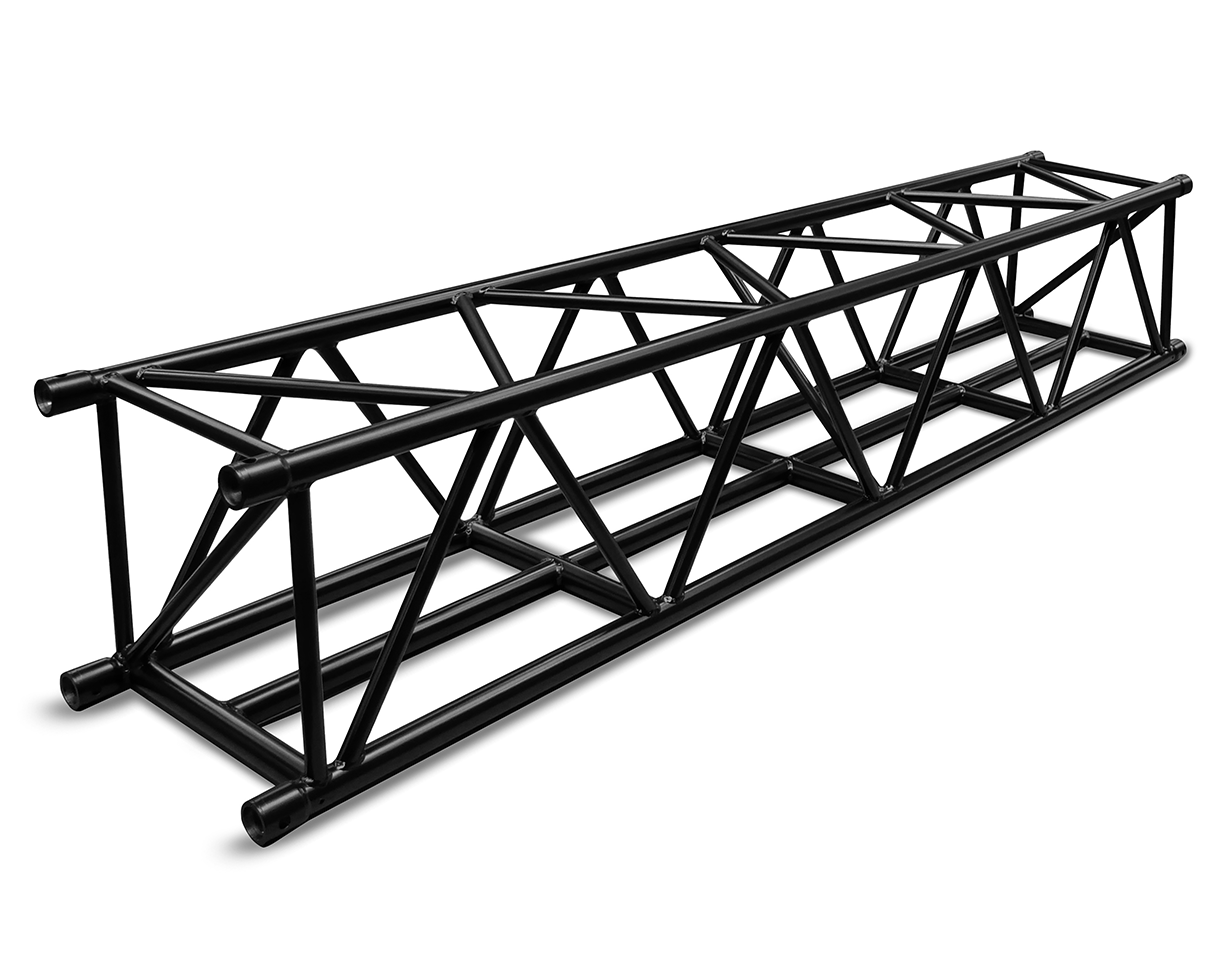

S52SV MB Square Truss Length

Catalog number: S52SV-L100-MB
Item code:

S52 MB Series truss is constructed of main chords (50 x 4mm) and diagonal members (30 x 3 mm). Equipped with the CCS7 conical coupling system, the S52 MB truss is fast and easy to assemble. The S52 truss offers a strong truss with a very high loading capacity. The clever pin orientation guarantees fast and foolproof assembly. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape.

The S52SV MB series is fully compatible with the regular S52SV truss series and can be combined in one grid.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us

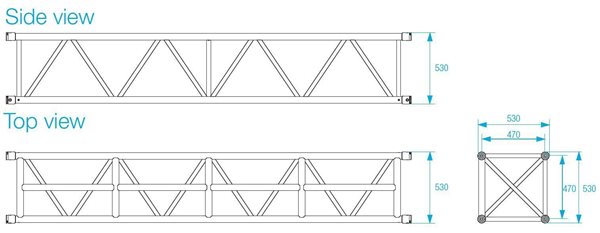

S52SV MB Square Truss Length
Technical Specifications - S52SV-MB
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 30 x 3 mm
Coupling System CCS7
  • Clever pin orientation
  • Fast and easy to assemble
  • Very high loading capacity
  • Can be combined with standard S52V or S52SV truss series
  • Load in the centralised in the truss section
