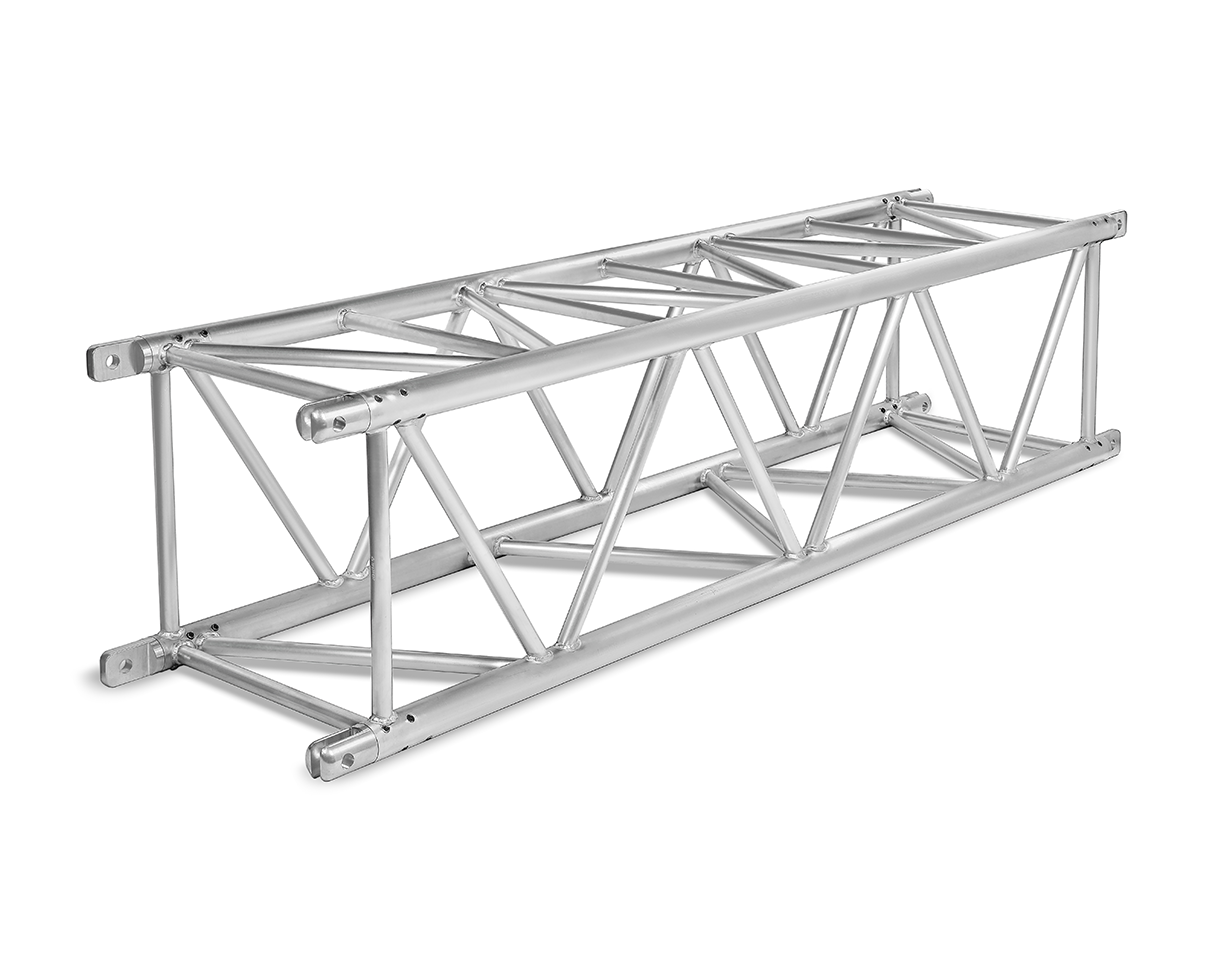

D75T Square Truss Length

Catalog number: D75T-L200
Item code: 111810036

The D75T truss is constructed of main chords (80 x 10 mm) and diagonal members (40 x 3 mm). The D75 truss is equipped with a smart, orientation free, pin-fork type connection and is fast and easy to assemble. The D75 truss is developed for special applications where extreme loads or circumstances require extreme strength; it can be used as mast section in combination with tower systems or as span in combination with the mammoth truss. Due to its 4-sided webbing the D75 truss can absorb vertical as well as horizontal loads, which make sit ideal for outdoor or 3 dimensional structures. The integrated horizontal bracing facilitates safe and easy access of the mast sections when in position.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
D75T Square Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
1,00 3,28 45,36 100.00 D75T-L100 111810039
2,00 6,56 75,65 166.78 D75T-L200 111810036
3,00 9,84 106,02 233.73 D75T-L300 111810037
3,85 12,62 133,54 294.40 D75T-L385 111100008
4,00 13,11 139,71 308.00 D75T-L400 111810038
Other Lengths available on request
Technical Specifications - D75 Series
Alloy EN AW 6082 T6
Main Chords 80 x 10 mm
Diagonal Members 40 x 3 mm
Coupling System Pin-fork type connection


D75T - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

16

52,5

541,1

364,1

95

3,7

4960,3

10947

75,9

3,0

3720,3

8210,6

2480,2

5473,7

2066,8

4561,4

640.0

17

55,8

507,2

341,3

107

4,2

4633,6

10226

85,6

3,4

3475,2

7669,8

2316,8

5113,2

1930,7

4261,0

680.0

18

59,0

477,0

321,0

120

4,7

4341,2

9581

96,0

3,8

3255,9

7185,7

2170,6

4790,5

1808,8

3992,1

720.0

19

62,3

429,2

288,8

134

5,3

4077,6

8999

107,0

4,2

3058,2

6749,5

2038,8

4499,7

1699,0

3749,7

760.0

20

65,6

383,9

258,3

148

5,8

3838,7

8472

118,5

4,7

2879,0

6354,0

1919,3

4236,0

1599,4

3530,0

800.0

21

68,9

344,8

232,0

163

6,4

3620,7

7991

130,7

5,1

2715,5

5993,2

1810,4

3995,5

1508,6

3329,6

840.0

22

72,2

311,0

209,3

179

7,1

3421,0

7550

143,4

5,6

2565,7

5662,6

1710,5

3775,0

1425,4

3145,9

880.0

23

75,4

281,5

189,4

196

7,7

3237,0

7144

156,8

6,2

2427,8

5358,1

1618,5

3572,0

1348,8

2976,7

920.0

24

78,7

255,6

172,0

213

8,4

3066,9

6769

170,7

6,7

2300,2

5076,5

1533,4

3384,3

1277,9

2820,3

960.0

25

82,0

232,7

156,6

231

9,1

2908,9

6420

185,2

7,3

2181,7

4815,0

1454,5

3210,0

1212,1

2675,0

1000.0

26

85,3

212,4

142,9

250

9,9

2761,7

6095

200,3

7,9

2071,3

4571,4

1380,9

3047,6

1150,7

2539,7

1040.0

27

88,6

194,4

130,8

270

10,6

2624,1

5791

216,0

8,5

1968,1

4343,6

1312,1

2895,7

1093,4

2413,1

1080.0

28

91,8

178,2

119,9

290

11,4

2495,0

5507

232,3

9,1

1871,3

4129,9

1247,5

2753,3

1039,6

2294,4

1120.0

29

95,1

163,7

110,1

311

12,3

2373,6

5239

249,2

9,8

1780,2

3929,0

1186,8

2619,3

989,0

2182,8

1160.0

30

98,4

150,6

101,3

333

13,1

2259,1

4986

266,7

10,5

1694,3

3739,4

1129,6

2492,9

941,3

2077,4

1200.0

31

101,7

138,8

93,4

356

14,0

2150,8

4747

284,8

11,2

1613,1

3560,1

1075,4

2373,4

896,2

1977,9

1240.0

32

105,0

128,0

86,1

379

14,9

2048,2

4520

303,4

11,9

1536,1

3390,2

1024,1

2260,2

853,4

1883,5

1280.0

33

108,2

118,2

79,5

403

15,9

1950,6

4305

322,7

12,7

1463,0

3228,8

975,3

2152,5

812,8

1793,8

1320.0

34

111,5

109,3

73,5

428

16,8

1857,8

4100

342,5

13,5

1393,4

3075,1

928,9

2050,1

774,1

1708,4

1360.0

35

114,8

101,1

68,0

454

17,9

1769,2

3905

363,0

14,3

1326,9

2928,5

884,6

1952,4

737,2

1627,0

1400.0

36

118,1

93,6

63,0

480

18,9

1684,6

3718

384,0

15,1

1263,4

2788,4

842,3

1858,9

701,9

1549,1

1440.0

37

121,4

86,7

58,3

507

20,0

1603,5

3539

405,7

16,0

1202,7

2654,3

801,8

1769,5

668,1

1474,6

1480.0

38

124,6

80,3

54,0

535

21,0

1525,8

3367

427,9

16,8

1144,4

2525,6

762,9

1683,7

635,8

1403,1

1520.0

39

127,9

74,4

50,1

563

22,2

1451,2

3203

450,7

17,7

1088,4

2402,0

725,6

1601,4

604,7

1334,5

1560.0

40

131,2

69,0

46,4

592

23,3

1379,3

3044

474,1

18,7

1034,5

2283,1

689,7

1522,1

574,7

1268,4

1600.0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Extreme strength for extreme circumstances
  • Can serve as mast-section or span
  • Ideal for outdoor or 3-dimensional constructions
  • Smart orientation free connection
  • Fast and easy to assemble
