S36PRF Fixed PreRigTruss Length

Catalog number: S36PRF-L122
Item code: 111110259

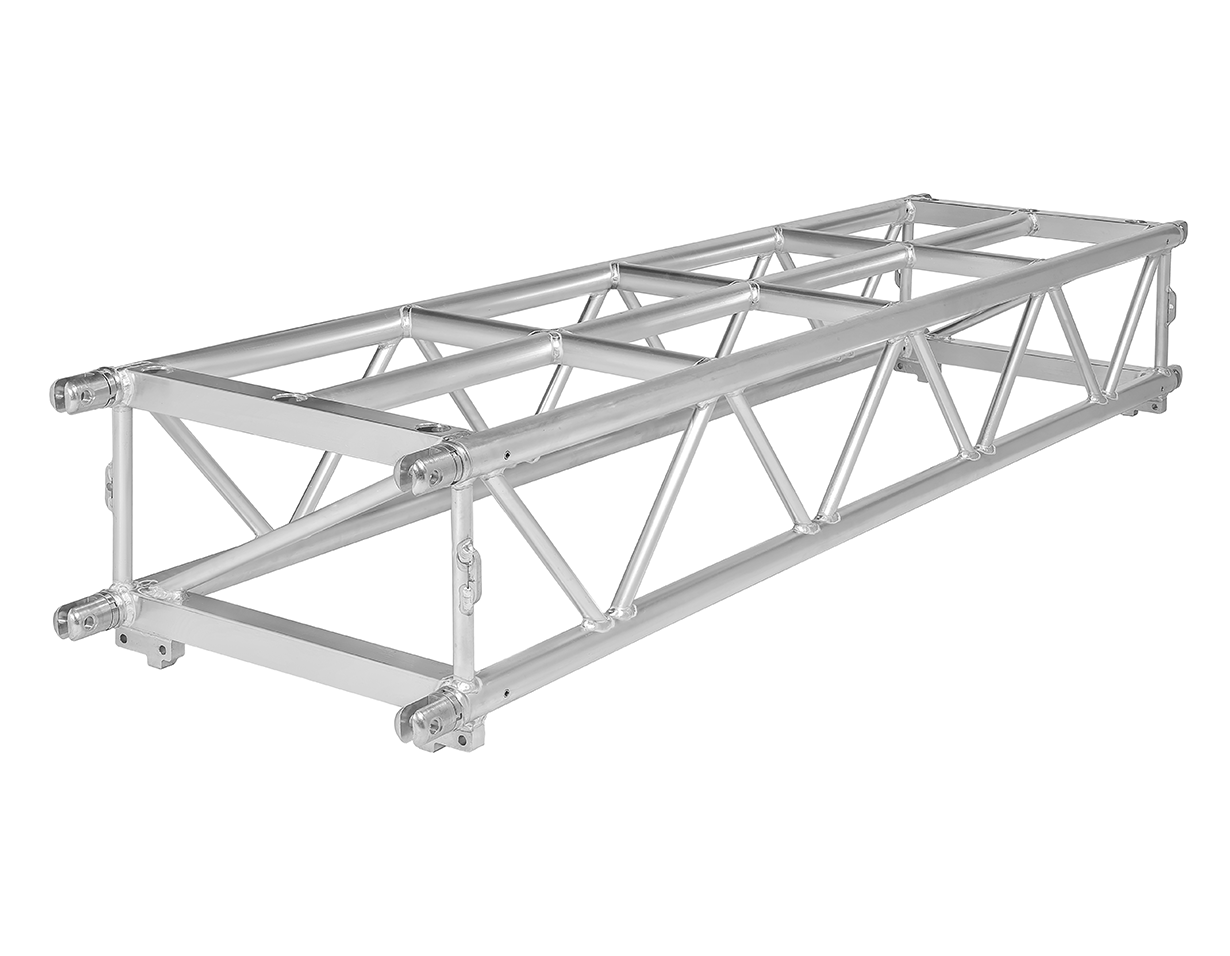

S36PRT truss is constructed of main chords (50 x 4 mm) and diagonal members (25 x 3 mm). Equipped with a pivoting pin-fork connection system, the S36PRT truss is fast and easy to assemble. Designed as pre-rig truss for moving heads, the truss has both fixed or flexible cross and linear braces on the topside to accommodate any type of luminaire. The trusses and dollies can be easily stacked for storage or transport.

Download
S36PRF product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S36PRF Fixed PreRigTruss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
1,22 4,00 25,27 55.71 S36PRF-L122 111110259
2,44 8,00 37,10 81.79 S36PRF-L244 111110260
3,05 10,00 43,20 95.24 S36PRF-L305 111110261
Other Lengths available on request
Technical Specifications - S36 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 25 x 3 mm
Coupling System Rotatable Pin/fork


S36 PRT- Allowable Loading




MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

weight

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

kgs

lbs

4.00

13.1

1200.6

807.8

13

0.5

2436.5

5377.3

11

0.4

1827.3

4033.0

1218.2

2688.6

1015.2

2240.5

96.7

213.0

5.00

16.4

770.2

518.3

21

0.8

1925.6

4249.8

17

0.7

1444.2

3187.3

962.8

2124.9

802.3

1770.7

122.9

270.7

6.00

19.7

526.9

354.5

30

1.2

1580.6

3488.5

24

1.0

1185.5

2616.4

790.3

1744.2

658.6

1453.5

149.1

328.4

7.00

23.0

380.1

255.8

41

1.6

1330.5

2936.4

33

1.3

997.9

2202.3

665.3

1468.2

554.4

1223.5

175.3

386.1

8.00

26.2

284.9

191.7

53

2.1

1139.6

2515.2

44

1.7

854.7

1886.4

569.8

1257.6

474.8

1048.0

201.5

443.8

9.00

29.5

219.6

147.8

67

2.7

988.3

2181.1

55

2.2

741.2

1635.8

494.1

1090.5

411.8

908.8

227.7

501.5

10.00

32.8

172.9

116.3

83

3.3

864.5

1908.1

69

2.7

648.4

1431.0

432.3

954.0

360.2

795.0

253.9

559.3

11.00

36.1

138.4

93.1

101

4.0

760.9

1679.4

84

3.3

570.7

1259.5

380.5

839.7

317.1

699.7

280.1

617.0

12.00

39.4

112.1

75.4

120

4.7

672.4

1484.0

101

4.0

504.3

1113.0

336.2

742.0

280.2

618.3

306.3

674.7

13.00

42.6

91.6

61.6

141

5.5

595.5

1314.3

119

4.7

446.6

985.7

297.8

657.1

248.1

547.6

332.5

732.4

14.00

45.9

75.4

50.7

163

6.4

527.7

1164.6

139

5.5

395.8

873.5

263.9

582.3

219.9

485.3

358.7

790.1

15.00

49.2

62.3

41.9

187

7.4

467.2

1031.1

161

6.3

350.4

773.3

233.6

515.6

194.7

429.6

384.9

847.8

16.00

52.5

51.6

34.7

213

8.4

412.6

910.6

185

7.3

309.5

683.0

206.3

455.3

171.9

379.4

411.1

905.5

17.00

55.8

42.7

28.7

241

9.5

362.9

801.0

211

8.3

272.2

600.7

181.5

400.5

151.2

333.7

437.3

963.2

18.00

59.0

35.3

23.7

270

10.6

317.3

700.2

239

9.4

238.0

525.2

158.6

350.1

132.2

291.8

463.5

1020.9

19.00

62.3

29.0

19.5

301

11.8

275.1

607.1

269

10.6

206.3

455.3

137.5

303.5

114.6

253.0

489.7

1078.6

20.00

65.6

23.6

15.9

333

13.1

235.8

520.4

302

11.9

176.8

390.3

117.9

260.2

98.2

216.8

515.9

1136.3

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

When dollies are not mounted on the truss the loading could be increased with 12 kg per meter


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy to assemble
  • Ideal for moving heads
  • Suited for any type of luminaire
  • Easy to stack
