M145RV Mammoth Truss Length

Catalog number: M145RV-L240
Item code: 111110240

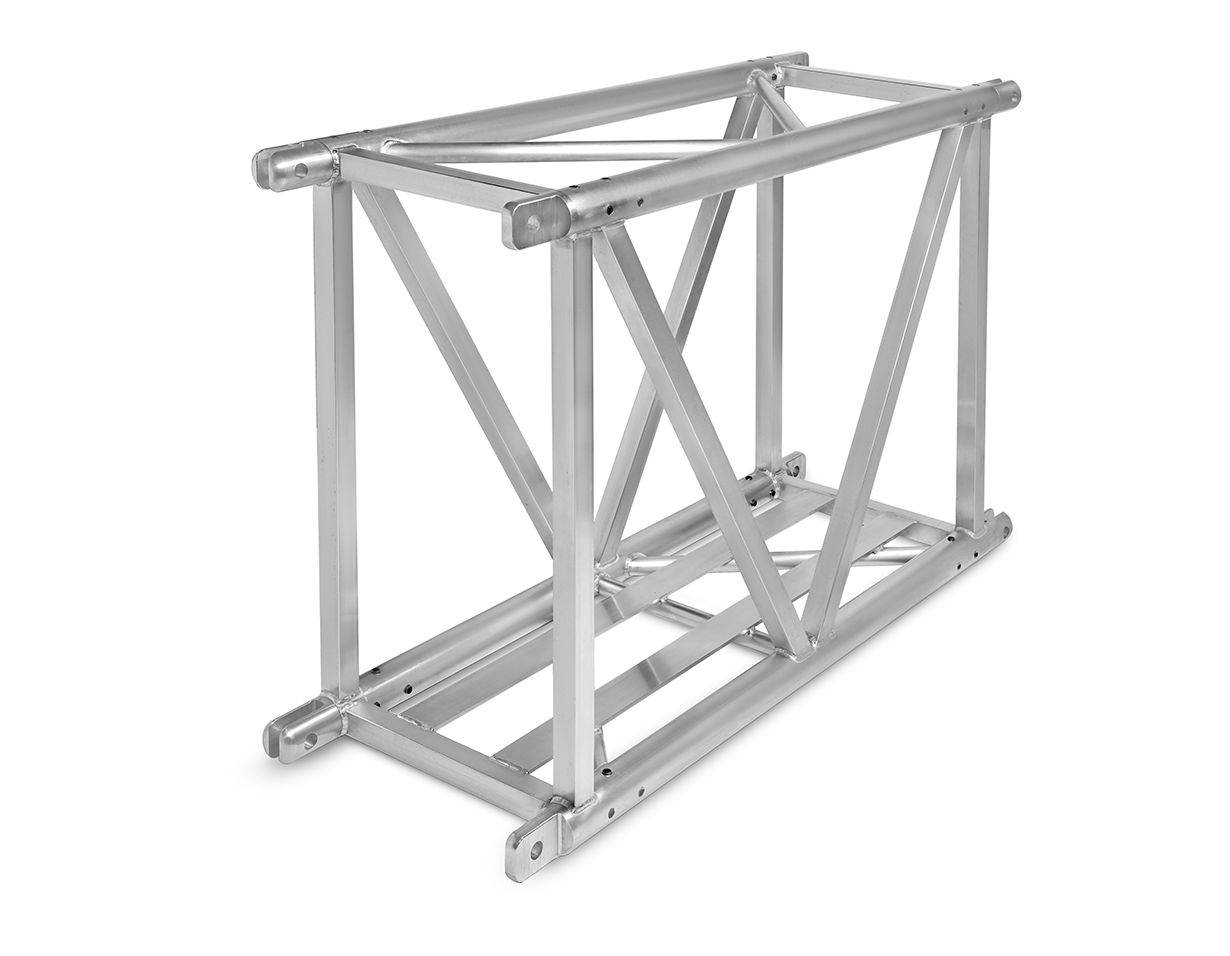

The M145RV Mammoth truss is constructed of main chords (100 x 8 mm) and diagonal members (60 x 60 x 3,5 mm and 50 x 4 mm). The M145RV truss is equipped with a smart, orientation free, pin-fork type connection and is fast and easy to assemble. The M145RV truss is developed for special applications where extreme loads or circumstances require massive strength; it can be used as mast section in combination with tower systems or as span in combination with the D75 truss. Due to its 4-sided webbing the D75 truss can absorb vertical as well as horizontal loads, which make sit ideal for outdoor or 3 dimensional structures. Spans up to 30 metres are no challenge for this truss. Other truss types can be stored inside the M145RV truss.

Download
M145RV Mammoth Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
M145RV Mammoth Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
1,00 3,28 79,90 176.15 M145RV-L100 111110295
2,40 7,87 138,06 304.37 M145RV-L240 111110240
3,00 9,84 170,74 376.41 M145RV-L300 111110294
Other Lengths available on request
Technical Specifications - M145RV Series
Alloy EN AW 6082 T6
Main Chords 100 x 8 mm
Diagonal Members 60 x 60 x 3,5 / 50 x 4 mm
Coupling System Pin / Fork connection


M145RV - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

24.0

78.7

700.0

471.0

122

4.97

8400.0

18538.8

97

3.99

6300.0

13904.1

4200.0

9269.4

3486.0

7693.6

1200

26.4

86.6

569.8

383.4

147

6.01

7521.8

16600.7

118

4.83

5641.4

12450.5

3760.9

8300.3

3121.6

6889.3

1320

28.8

94.5

470.8

316.8

175

7.16

6780.0

14963.5

140

5.75

5085.0

11222.6

3390.0

7481.7

2813.7

6209.8

1440

31.2

102.3

393.8

265.0

206

8.40

6143.1

13557.8

165

6.75

4607.3

10168.3

3071.5

6778.9

2549.4

5626.5

1560

33.6

110.2

332.7

223.8

239

9.74

5588.6

12334.0

191

7.83

4191.4

9250.5

2794.3

6167.0

2319.3

5118.6

1680

36.0

118.1

283.3

190.6

274

11.18

5100.0

11255.7

219

8.99

3825.0

8441.8

2550.0

5627.9

2116.5

4671.1

1800

38.4

126.0

243.0

163.5

312

12.72

4665.0

10295.7

249

10.22

3498.8

7721.7

2332.5

5147.8

1936.0

4272.7

1920

40.8

133.8

209.5

141.0

352

14.36

4274.1

9433.0

282

11.54

3205.6

7074.7

2137.1

4716.5

1773.8

3914.7

2040

43.2

141.7

181.5

122.1

394

16.10

3920.0

8651.4

316

12.94

2940.0

6488.6

1960.0

4325.7

1626.8

3590.3

2160

45.6

149.6

157.8

106.1

440

17.94

3596.8

7938.2

352

14.42

2697.6

5953.7

1798.4

3969.1

1492.7

3294.4

2280

48.0

157.4

137.5

92.5

487

19.88

3300.0

7283.1

390

15.98

2475.0

5462.3

1650.0

3641.6

1369.5

3022.5

2400

50.4

165.3

120.1

80.8

537

21.91

3025.7

6677.8

430

17.61

2269.3

5008.3

1512.9

3338.9

1255.7

2771.3

2520

52.8

173.2

105.0

70.6

589

24.05

2770.9

6115.4

472

19.33

2078.2

4586.5

1385.5

3057.7

1149.9

2537.9

2640

55.2

181.1

91.8

61.8

644

26.29

2533.0

5590.4

516

21.13

1899.8

4192.8

1266.5

2795.2

1051.2

2320.0

2760

57.6

188.9

80.2

54.0

701

28.62

2310.0

5098.2

561

23.00

1732.5

3823.6

1155.0

2549.1

958.7

2115.7

2880

60.0

196.8

70.0

47.1

761

31.06

2100.0

4634.7

609

24.96

1575.0

3476.0

1050.0

2317.4

871.5

1923.4

3000

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • The Mammoth truss provides exceptional strength
  • Absorbs vertical and horizontal loads
  • Ideal for outdoor or 3-dimensional structures
  • Efficient use of transportation space
