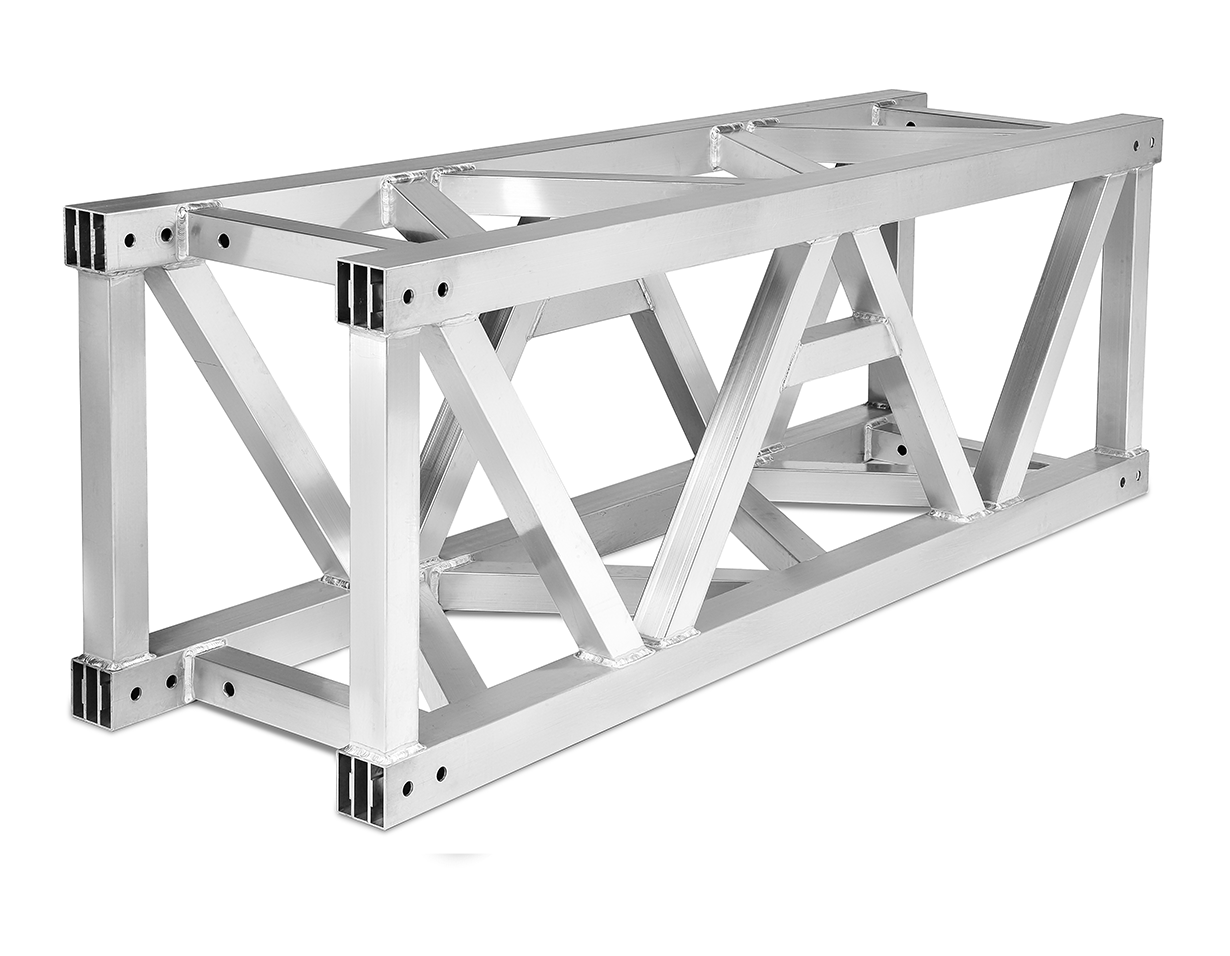

BGR70 Rectangular Truss Length

Catalog number: BGR70-L100
Item code: 111110433

BGR70 A low volume truss with extreme load bearing capacity
The BGR70 truss is designed to create large spans that can hold heavy loads. Compared to conventional 100’er truss systems, the BGR70 truss is 40% stronger and safes up to 35% transport volume. Rectangular profiles create a truss that can be used for spans up to 45 metres, still allowing a centre point load of 750 kg.

Zero deflection due to pre-cambering
Using the unique pre-camber options, you can create an absolute straight truss. Depending on the applied load, a combination of spacers ranging from 0mm to 4mm can create a pre-camber effect that will result in zero deflection, despite the applied loading. This is a great feature when using motion or led screens.

Application scope
Due to its low volume and height, combined with a high load bearing capacity, the BGR70 truss is extremely suitable as a mother grid, or to support a front façade for large sets, like on dance festivals. Due to its zero deflection, the BGR70 truss is ideal in applications with motion or LED screens.

Download
BGR70 flyer
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
BGR70 Rectangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,50 1,64 22,50 49.60 BGR70-L050 111110432
1,00 3,28 45,00 99.21 BGR70-L100 111110433
2,00 6,56 90,00 198.41 BGR70-L200 111110434
Other Lengths available on request
Technical Specs - BGR70
Type                 BGR70
Alloy EN AW 6082-T6
Truss height 690 mm
Truss Width 550 mm
Self-weight 45 kg/m
Main chords 80x80x5 mm
Diagonal Members 60x60x3,5 mm
Coupling system Lug 70x20 mm + pin 18 mm


BGR70 - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed Load



Centre Single Load



Single Load Third Points

Single Load Fourth Points

Single Load Fifth Points



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kg

lbs

mm

inch

kg

lbs

kg

lbs

kg

lbs

total weight

10

32,8

1453

978

37

1,5

7267

16038

30

1,2

5450

12028

3633

8019

3028

6682

450

11

36,1

1194

803

45

1,8

6568

14495

36

1,4

4926

10871

3284

7247

2736

6039

495

12

39,4

997

671

54

2,1

5981

13201

44

1,7

4486

9901

2991

6601

2492

5500

540

13

42,6

843

568

63

2,5

5482

12100

51

2,0

4112

9075

2741

6050

2284

5042

585

14

45,9

722

486

73

2,9

5052

11149

60

2,3

3789

8362

2526

5575

2105

4645

630

15

49,2

623

419

84

3,3

4676

10320

69

2,7

3507

7740

2338

5160

1948

4300

675

16

52,5

543

365

96

3,8

4344

9588

78

3,1

3258

7191

2172

4794

1810

3995

720

17

55,8

476

321

109

4,3

4049

8937

89

3,5

3037

6703

2025

4469

1687

3724

765

18

59,0

421

283

122

4,8

3785

8354

100

3,9

2839

6265

1893

4177

1577

3481

810

19

62,3

373

251

136

5,3

3546

7827

112

4,4

2660

5870

1773

3914

1478

3261

855

20

65,6

333

224

151

5,9

3330

7349

124

4,9

2497

5511

1665

3674

1387

3062

900

21

68,9

298

201

166

6,5

3132

6911

137

5,4

2349

5184

1566

3456

1305

2880

945

22

72,2

268

180

183

7,2

2950

6510

151

6,0

2212

4882

1475

3255

1229

2712

990

23

75,4

242

163

200

7,9

2782

6139

166

6,5

2086

4605

1391

3070

1159

2558

1035

24

78,7

219

147

218

8,6

2626

5796

182

7,2

1970

4347

1313

2898

1094

2415

1080

25

82,0

199

134

237

9,3

2481

5477

198

7,8

1861

4107

1241

2738

1034

2282

1125

26

85,3

180

121

257

10,1

2346

5178

216

8,5

1760

3884

1173

2589

978

2158

1170

27

88,6

164

111

277

10,9

2220

4899

234

9,2

1665

3674

1110

2449

925

2041

1215

28

91,8

150

101

299

11,8

2101

4636

253

10,0

1575

3477

1050

2318

875

1932

1260

29

95,1

137

92

321

12,6

1988

4388

273

10,7

1491

3291

994

2194

828

1828

1305

30

98,4

125

84

344

13,5

1882

4154

293

11,6

1412

3116

941

2077

784

1731

1350

31

101,7

115

77

368

14,5

1782

3932

315

12,4

1336

2949

891

1966

742

1638

1395

32

105,0

105

71

393

15,5

1686

3721

338

13,3

1265

2791

843

1861

703

1551

1440

33

108,2

97

65

419

16,5

1595

3521

362

14,2

1196

2640

798

1760

665

1467

1485

34

111,5

89

60

445

17,5

1508

3329

386

15,2

1131

2497

754

1664

628

1387

1530

35

114,8

81

55

473

18,6

1425

3146

412

16,2

1069

2359

713

1573

594

1311

1575

36

118,1

75

50

501

19,7

1346

2970

439

17,3

1009

2228

673

1485

561

1238

1620

37

121,4

69

46

531

20,9

1269

2802

467

18,4

952

2101

635

1401

529

1167

1665

38

124,6

63

42

561

22,1

1196

2640

496

19,5

897

1980

598

1320

498

1100

1710

39

127,9

58

39

592

23,3

1125

2484

526

20,7

844

1863

563

1242

469

1035

1755

40

131,2

53

36

624

24,6

1057

2334

557

21,9

793

1750

529

1167

441

972

1800

41

134,5

48

33

657

25,9

992

2188

589

23,2

744

1641

496

1094

413

912

1845

42

137,8

44

30

692

27,2

928

2048

623

24,5

696

1536

464

1024

387

853

1890

43

141,0

40

27

727

28,6

866

1912

658

25,9

650

1434

433

956

361

797

1935

44

144,3

37

25

763

30,0

807

1780

694

27,3

605

1335

403

890

336

742

1980

45

147,6

33

22

800

31,5

749

1652

732

28,8

561

1239

374

826

312

688

2025

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

  • Tool-less system, no tools needed for assembly and disassembly
  • Low volume element – reduces transport volume and storage costs
  • Integration for dolly and lifting bracket
  • Zero deflection, due to pre-camber system. Ideal for motion or LED applications.
  • Strong and compact – loads up to 3300kg on a 20m span.
  • Integration to accommodate cross trusses
  • Designed in compliance with Eurocodes, manufactured following EN1090 standards.
  • Can be stacked to 3-units height to facilitate transport
