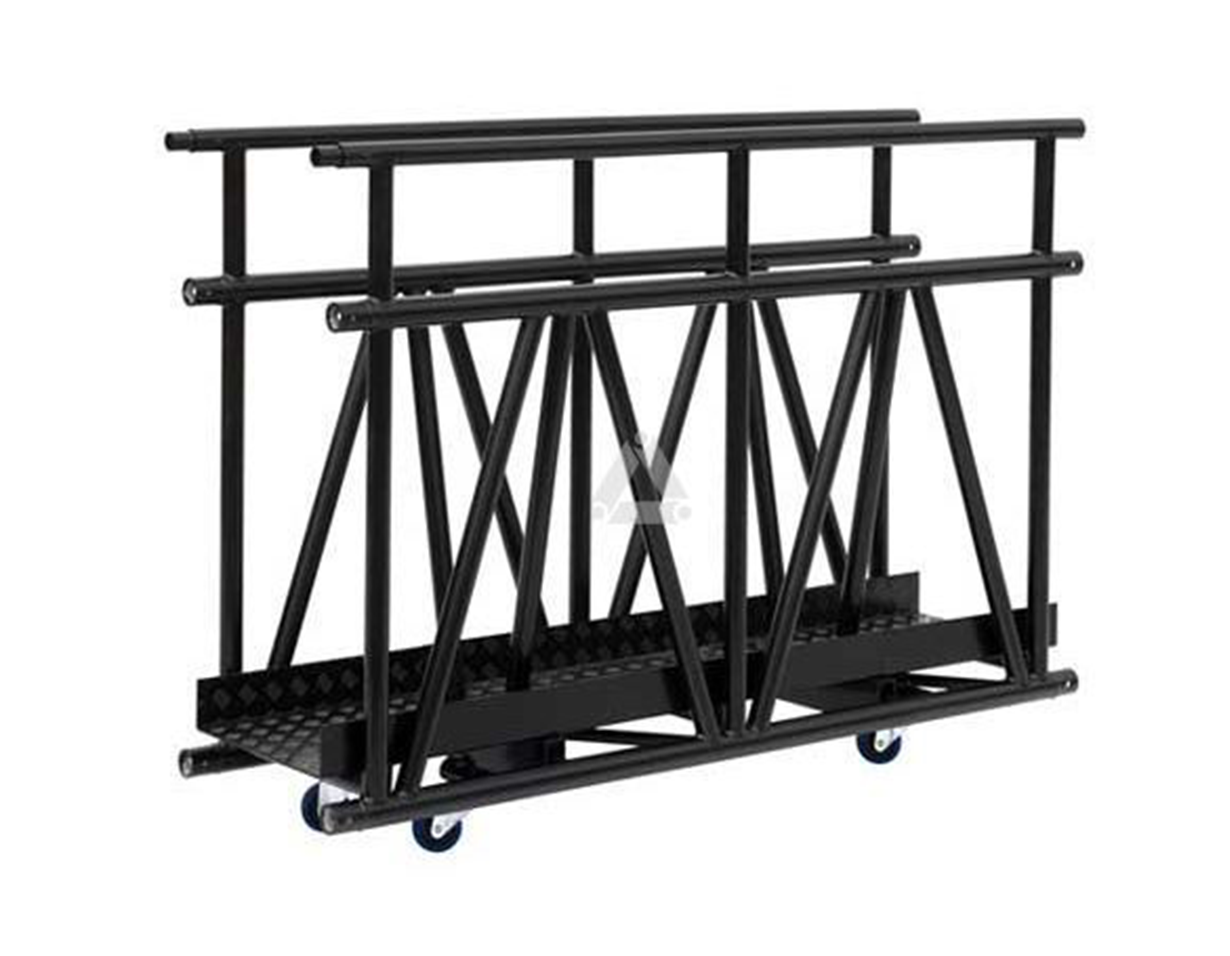

B100CW Catwalk Truss Length

Catalog number: B100CW-L200
Item code: 111110001

The design of the catwalk truss is based on the B100RV truss. The catwalk truss can be used to create mother grids, work platforms or proscenium of lighting bridges. The handrail and reinforced bottom plate create a safe walking and working environment. The catwalk truss can be fitted with additional bracing bars for suspension and optional side cantilevers to create space to hang your lighting equipment. The catwalk truss is available with a range of corners and accessories.


Download
B100CW Catwalk Truss product data sheet

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
B100CW Catwalk Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
2,00 6,56 74,39 164.00 B100CW-L200 111110001
3,00 9,84 105,12 231.75 B100CW-L300 111110330
4,00 13,12 129,11 284.64 B100CW-L400 111110005
Other Lengths available on request
Technical Specifications - B100CW Series
Alloy EN AW 6082 T6
Main Chords 60 x 6 mm
Diagonal Members 48 x 3 mm
Coupling System CCS7


B100RV - CW - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

4

13,1

1475,0

992,5

1

0,04

3188,7

7037,4

1

0,04

2391,5

5278,0

1594,3

3518,7

1328,6

2932,2

120,0

5

16,4

1010,7

680,0

2

0,08

2526,6

5576,3

1

0,04

1895,0

4182,2

1263,3

2788,1

1052,8

2323,4

150,0

6

19,7

693,6

466,7

2

0,08

2080,8

4592,3

2

0,08

1560,6

3444,2

1040,4

2296,1

867,0

1913,4

180,0

7

23,0

502,4

338,1

3

0,12

1758,5

3880,9

2

0,08

1318,8

2910,7

879,2

1940,5

732,7

1617,0

210,0

8

26,2

378,3

254,6

4

0,16

1513,3

3339,9

3

0,12

1135,0

2504,9

756,7

1670,0

630,6

1391,6

240,0

9

29,5

293,3

197,3

5

0,20

1319,7

2912,5

4

0,16

989,8

2184,4

659,8

1456,3

549,9

1213,6

270,0

10

32,8

232,4

156,4

6

0,24

1162,1

2564,7

5

0,20

871,6

1923,5

581,0

1282,3

484,2

1068,6

300,0

11

36,1

187,4

126,1

7

0,28

1030,7

2274,6

6

0,24

773,0

1706,0

515,3

1137,3

429,4

947,8

330,0

12

39,4

153,1

103,0

9

0,35

918,9

2028,0

7

0,28

689,2

1521,0

459,4

1014,0

382,9

845,0

360,0

13

42,6

126,5

85,1

10

0,39

822,2

1814,7

8

0,31

616,7

1361,0

411,1

907,3

342,6

756,1

390,0

14

45,9

105,4

70,9

12

0,47

737,5

1627,6

10

0,39

553,1

1220,7

368,7

813,8

307,3

678,2

420,0

15

49,2

88,3

59,4

14

0,55

662,2

1461,5

11

0,43

496,7

1096,1

331,1

730,7

275,9

609,0

450,0

16

52,5

74,3

50,0

16

0,63

594,7

1312,4

13

0,51

446,0

984,3

297,3

656,2

247,8

546,8

480,0

17

55,8

62,8

42,2

18

0,71

533,5

1177,4

14

0,55

400,1

883,0

266,7

588,7

222,3

490,6

510,0

18

59,0

53,1

35,7

20

0,79

477,6

1054,0

16

0,63

358,2

790,5

238,8

527,0

199,0

439,2

540,0

19

62,3

44,9

30,2

22

0,87

426,2

940,5

18

0,71

319,6

705,4

213,1

470,3

177,6

391,9

570,0

20

65,6

37,9

25,5

25

0,98

378,5

835,4

20

0,79

283,9

626,6

189,3

417,7

157,7

348,1

600,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Suited to serve as mothergrid or working platform
  • Can also serve as a prosceniums of lighting bridges
  • Creates a safe walking and working environment
