H30L Ladder Truss Length

Catalog number: H30L-L100
Item code: 111050041

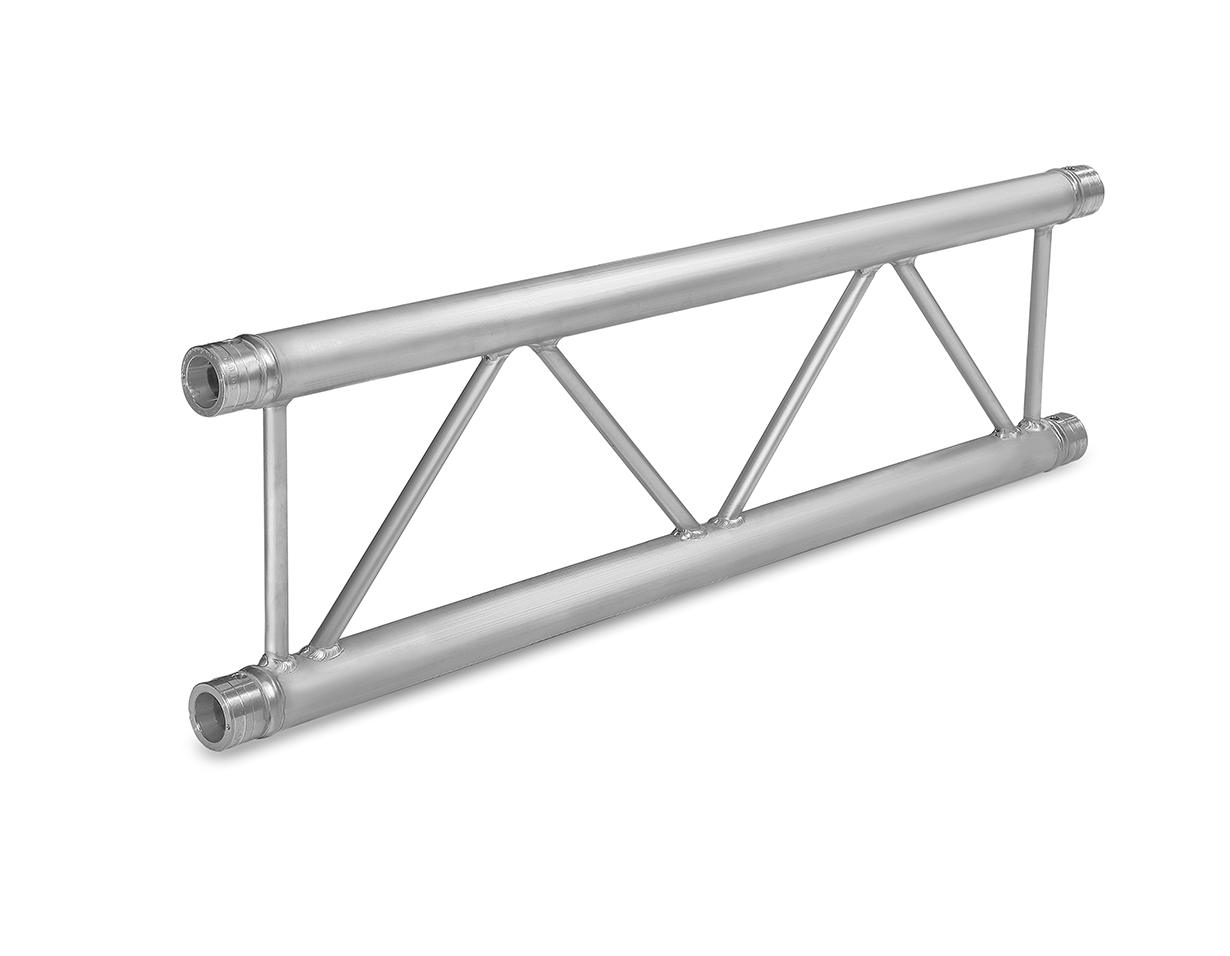

H30 Series truss is constructed of main chords (48 x 3 mm) and diago­nal members (16 x 2 mm). Equipped with the CCS6 conical coupling system, the H30 truss is fast and easy to assemble. The H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Download
H30L Ladder Truss product data sheet

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H30L Ladder Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,25 0,82 1,10 2.43 H30L-L025 111050036
0,29 0,95 1,20 2.65 H30L-L029 111050037
0,50 1,64 1,80 3.97 H30L-L050 111050039
0,75 2,46 2,40 5.29 H30L-L075 111050040
1,00 3,28 3,10 6.83 H30L-L100 111050041
1,50 4,92 4,40 9.70 H30L-L150 111050042
2,00 6,56 5,60 12.35 H30L-L200 111050044
2,50 8,20 7,00 15.43 H30L-L250 111050048
3,00 9,84 8,20 18.08 H30L-L300 111050052
4,00 13,12 11,00 24.25 H30L-L400 111050055
Other Lengths available on request


Technical Specifications - H30 Series
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal members 16 x 2 mm
Coupling System CCS6

H30L - Allowable Loading (Span supported on top chord.)

Uniformly Distributed

Load



SPAN

UDL

DEFLECTION

CPL

DEFLECTION



m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch



1

3,3

979,2

658,9

1

0,0

979,2

2161,2

1

0,0



2

6,6

389,0

261,7

1

0,0

389,0

858,5

1

0,0

3

9,8

156,0

105,0

2

0,1

234,0

516,4

2

0,1

4

13,1

73,0

49,1

3

0,1

146,0

322,2

3

0,1

5

16,4

36,0

24,2

4

0,2

90,0

198,6

3

0,1

6

19,7

15,0

10,1

3

0,1

45,0

99,3

3

0,1

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

Spans must be supported at each end.

Loads must be suspended from bottom chord only.



H30L - Allowable Loading (Top chord sideways supported each metre.)

Uniformly Distributed

Load



SPAN

UDL

DEFLECTION

CPL

DEFLECTION



m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch



4

13,1

242,8

163,4

18

0,7

619,9

1368,1

15

0,6



5

16,4

193,7

130,3

28

1,1

516,7

1140,5

23

0,9

6

19,7

161,0

108,3

41

1,6

442,2

975,9

33

1,3

7

23,0

124,6

83,9

56

2,2

385,6

851,0

45

1,8

8

26,2

95,4

64,2

73

2,9

341,1

752,9

58

2,3

9

29,5

75,1

50,5

92

3,6

305,2

673,6

74

2,9

10

32,8

60,5

40,7

114

4,5

275,5

608,0

91

3,6



11

36,1

49,6

33,4

137

5,4

250,4

552,7

110

4,3



12

39,4

41,4

27,8

164

6,4

229,0

505,3

131

5,2



1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

Spans must be supported at each end.

Loads must be suspended from bottom chord only.



H30L - Allowable Loading (Top chords sideways supported every 2 metres.)

Uniformly Distributed

Load



SPAN

UDL

DEFLECTION

CPL

DEFLECTION



m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch



4

13,1

95,2

64,1

4

0,2

190,5

420,3

4

0,1



5

16,4

60,0

40,4

7

0,3

149,9

330,9

6

0,2

6

19,7

40,8

27,5

10

0,4

122,5

270,3

8

0,3

7

23,0

29,3

19,7

14

0,5

102,5

226,1

11

0,4

8

26,2

21,8

14,7

18

0,7

87,1

192,3

14

0,6

9

29,5

16,6

11,2

23

0,9

74,9

165,3

18

0,7

10

32,8

13,0

8,7

28

1,1

64,8

143,1

22

0,9



11

36,1

10,2

6,9

34

1,3

56,4

124,4

27

1,1



12

39,4

8,2

5,5

40

1,6

49,1

108,3

32

1,3



1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

Spans must be supported at each end.

Loads must be suspended from bottom chord only.


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.

  • Fast and easy assembly
  • Light weight system
  • World wide availability
  • Versatile application
