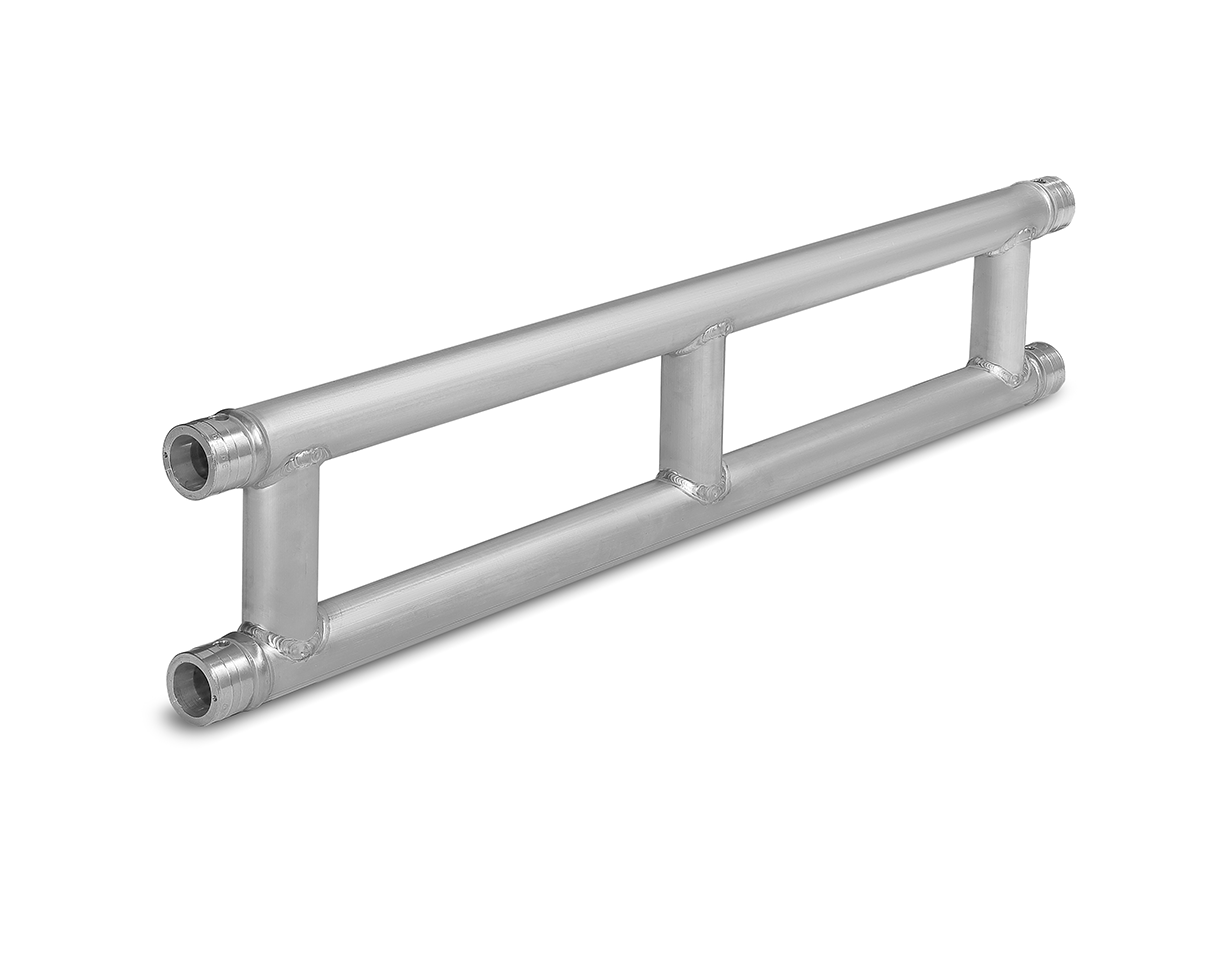

H20LB Ladder Beam Truss Length

Catalog number: H20LB-L100
Item code: 111050537

H20LB Series truss is constructed with both main chords and diagonal members (48 x 3 mm). Equipped with the CCS6 conical coupling system, the H20LB truss is fast and easy to assemble. The H20LB truss is a frame girder, without diagonal bracing and with rigid joints between top and bottom chords and verticals. The H20LB is designed to create matrix frames for circumstances with low headroom, like studio installations. Standard box corner ribs make it a complete and flexible system.

Download
H20LB Squre Serie Truss product data sheet
Technical specifications
Prolyte provides as much technical specifications as possible to help you decide if this type of equipment is fit for the job. Loading tables, calculation values, measurements; these are all valuable data to help you build your projects proper and safe.

Find any specifications lacking? Please contact us, so we can support you further.


Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H20LB Ladder Beam Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,50 1,64 1,76 3.88 H20LB-L050 111050536
1,00 3,30 3,05 6.72 H20LB-L100 111050537
1,50 4,90 4,34 9.57 H20LB-L150 111050568
2,00 6,60 5,62 12.39 H20LB-L200 111050538
2,50 8,20 6,91 15.23 H20LB-L250 111050538
3,00 9,80 8,20 18.08 H20LB-L300 111050539
Other Lengths available on request

Prolyte provides as much technical specifications as possible to help you decide if this type of equipment is fit for the job. Loading tables, calculation values, measurements; these are all valuable data to help you build your projects proper and safe.

Find any specifications lacking? Please contact us, so we can support you further.
H20LB - Allowable Loading
  Uniformly Distributed Load
SPAN UDL CPL
m ft kg/m lbs/ft kgs lbs total weight
1,00 3,30 620 417,3 420 926,9 3.3
1,50 4,90 350 235,6 350 772,5 4.6
2,00 6,60 160 107,7 240 529,7 5.9
2,50 8,20 150 101,0 200 441,4 7.2
3,00 9,80 120 80,8 190 419,3 8.5
3,50 11,50 90 60,6 170 375,2 8.9
4,00 13,10 70 47,1 150 331,1 9.8
4,50 14,70 60 40,4 130 286,9 11.2
5,00 16,40 45 30,3 110 242,8 12.7
1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.



Advantages
  • Fast and easy assembly
  • Ideal for matrix-frames
  • Complete and flexible system
