S52F Folding Truss Length

Catalog number: S52F-L120
Item code: 111110084

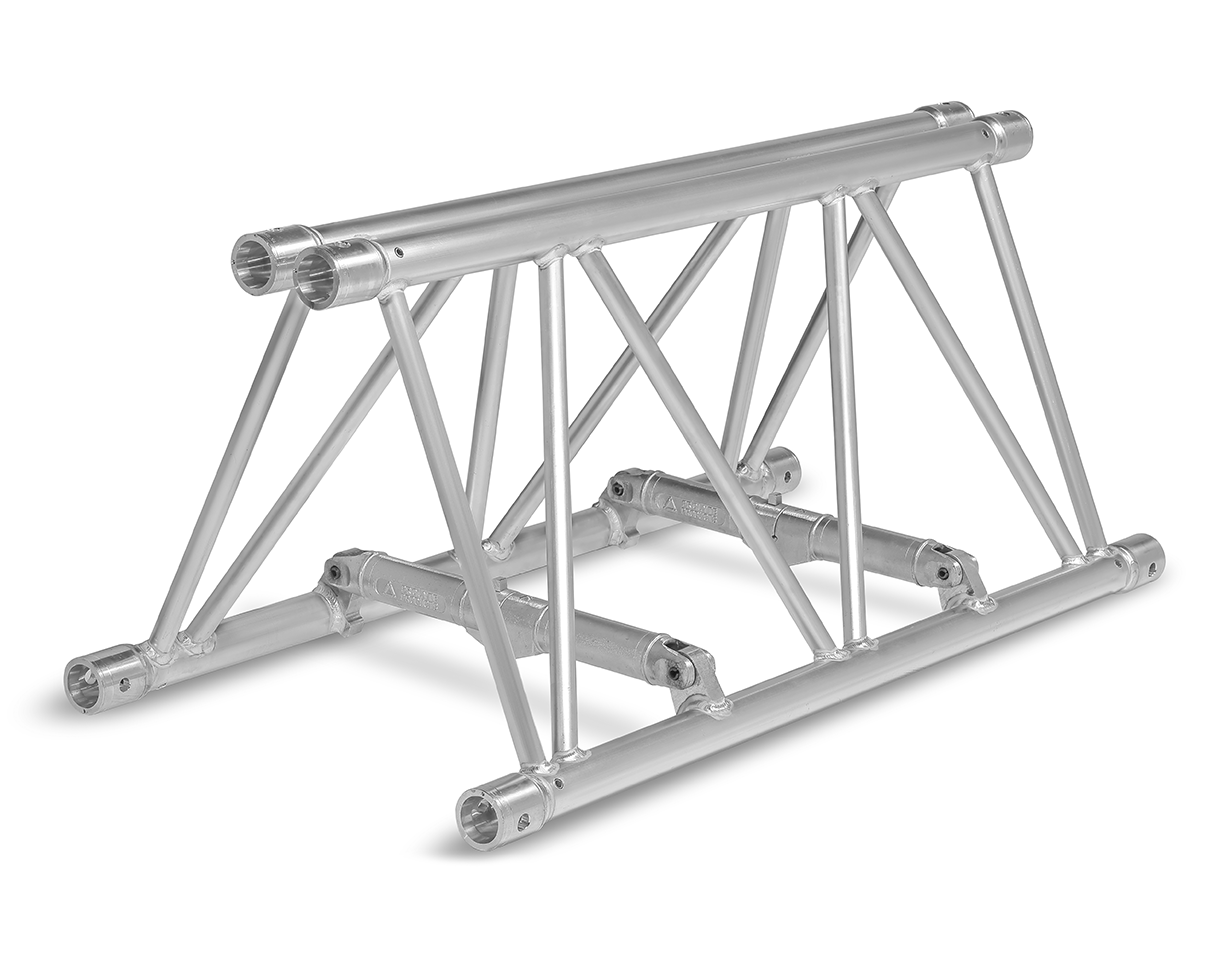

S52 Series truss is constructed of main chords (50 x 4 mm) and diagonal members (25 x 3 mm – 30 x 3mm). Equipped with the CCS7 conical coupling system, the S52 truss is fast and easy to assemble. The S52 truss offers a strong truss with a very high loading capacity; the S52SV has a 4-sided webbing, making it strong in a vertical and horizontal plane. The folding truss offers low transport volume combined with ultimate strength. S52F truss is not available as circular truss.

Download
S52F Folding Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S52F Folding Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,60 1,97 12,00 26.46 S52F-L060 111110081
0,80 2,62 13,40 29.54 S52F-L080 111110082
1,00 3,28 14,60 32.19 S52F-L100 111110083
1,20 3,94 19,40 42.77 S52F-L120 111110084
1,50 4,95 14,07 31.02 S52F-L150 111110085
1,60 5,25 22,30 49.16 S52F-L160 111110086
2,00 6,56 18,81 41.47 S52F-L200 111110087
2,40 7,87 31,00 68.34 S52F-L240 111110088
3,00 9,84 30,72 67.73 S52F-L300 111110089
3,20 10,50 32,76 72.22 S52F-L320 111110090
4,00 13,12 47,00 103.62 S52F-L400 111110091
Other Lengths available on request
Technical Specifications - S52 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 25 x 3 mm
Coupling System CCS7


S52F - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

2,4

7,9

1049,2

706,0

3

0,1

2060,3

4547,1

2

0,1

1030,2

2273,6

686,8

1515,7

515,1

1136,8

28,8

3,6

11,8

697,5

469,3

7

0,3

1895,7

4183,8

5

0,2

1027,2

2267,1

684,8

1511,4

513,6

1133,6

43,2

4,8

15,7

663,9

446,7

12

0,5

1574,1

3474,0

10

0,4

983,7

2170,9

655,8

1447,3

486,7

1074,1

57,6

6,0

19,7

529,6

356,4

19

0,7

1253,4

2766,3

15

0,6

940,1

2074,8

626,7

1383,2

459,7

1014,6

72

7,2

23,6

432,7

291,2

27

1,1

1038,6

2292,2

22

0,8

778,9

1719,1

519,3

1146,1

432,7

955,1

86,4

8,4

27,6

357,9

240,8

37

1,4

884,2

1951,4

29

1,2

663,2

1463,6

442,1

975,7

368,4

813,1

100,8

9,6

31,5

303,8

204,4

48

1,9

767,6

1694,1

38

1,5

575,7

1270,6

383,8

847,1

319,8

705,9

115,2

10,8

35,4

237,9

160,1

61

2,4

743,8

1641,6

49

1,9

557,9

1231,2

371,9

820,8

309,9

684,0

129,6

12,0

39,4

200,8

135,1

75

2,9

722,9

1595,4

60

2,4

542,2

1196,6

361,5

797,7

301,2

664,8

144

13,2

43,3

164,1

110,4

91

3,6

703,9

1553,5

72

2,9

527,9

1165,1

352,0

776,8

293,3

647,3

158,4

14,4

47,2

136,1

91,6

108

4,2

686,2

1514,4

86

3,4

514,6

1135,8

343,1

757,2

285,9

631,0

172,8

15,6

51,2

114,4

77,0

126

5,0

624,7

1378,7

101

4,0

468,5

1034,0

312,3

689,3

260,3

574,4

187,2

16,8

55,1

97,2

65,4

147

5,8

571,3

1260,9

117

4,6

428,5

945,7

285,7

630,4

238,0

525,4

201,6

18,0

59,0

83,2

56,0

168

6,6

561,9

1240,2

135

5,3

421,4

930,1

281,0

620,1

234,1

516,7

216

19,2

63,0

71,9

48,4

192

7,5

551,9

1218,0

153

6,0

413,9

913,5

275,9

609,0

229,9

507,5

230,4

20,4

66,9

62,4

42,0

216

8,5

509,3

1124,1

173

6,8

382,0

843,1

254,7

562,1

212,2

468,4

244,8

21,6

70,8

54,5

36,7

242

9,5

471,0

1039,4

194

7,6

353,2

779,6

235,5

519,7

196,2

433,1

259,2

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg

  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Fast and easy to assemble
  • Very high loading capacity
  • Low transport volume
  • Optimum strength
