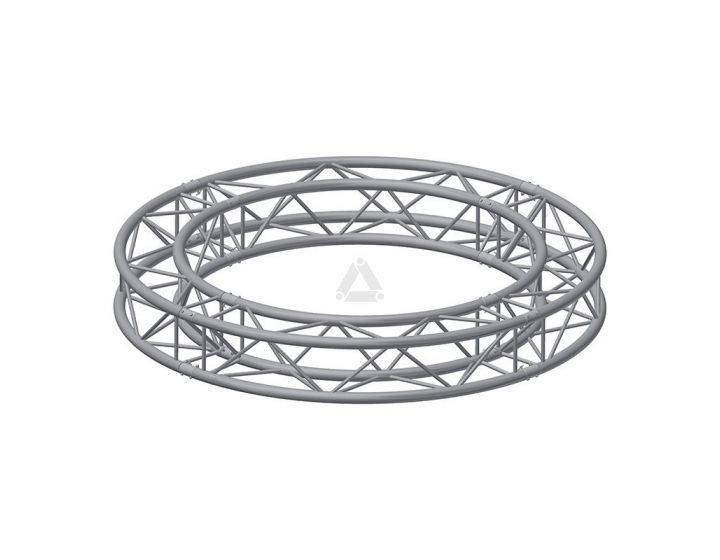

H30V Square Circle Truss

Catalog number: H30V-R200-4
Item code: 111060045

H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the H30 truss is fast and easy to assemble. The H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss circles are very measure steady and can be combined with any length or corner.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H30V Square Circle Truss
Technical Specifications - H30 Series
Alloy EN AW 6082 T6
Main Tubes 48 x 3 mm
Braces 16 x 2 mm
Coupling System CCS6

H30V Circular truss - Allowable Loading



3 Suspension Points

4 Suspension Points

6 Suspension Points

8 Suspension Points

10 Suspension Points

Diameter

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

m

ft

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

4

13.1

188

126,3

575

1268,3

305

205,2

757

1671,9

547

368,4

1001

2209,5

786

528,8

1133

2502,1

1019

685,7

1209

2668,1

6

19.7

102

68,4

443

977,6

175

118,0

617

1361,3

336

226,3

880

1942,3

498

335,1

1041

2298,3

656

441,7

1139

2514,8

8

26.2

63

42,7

359

793,3

115

77,5

519

1146,1

233

157,1

784

1731,5

356

239,3

962

2124,4

476

320,4

1077

2377,5

10

32.8

43

28,8

302

665,9

81

54,8

448

988,2

174

116,8

707

1560,9

271

182,6

894

1974,3

369

248,0

1021

2254,0

12

39.4

30

20,5

259

572,6

60

40,7

393

867,4

135

90,8

643

1419,9

216

145,4

835

1843,3

297

200,2

970

2142,3

14

45.9

22

15,1

227

501,3

46

31,3

350

772,0

108

72,8

590

1301,6

177

119,2

783

1728,0

247

166,3

924

2040,7


  • This loading figure is based on Uniformly Divided Suspension Points and a suspended load in each of the fields. In all other cases, this loading data is NOT valid.
  • If loads are unevenly divided, instability will occur. For more details and loading figures of other diameters, please contact our engineering department.
  • The absence of diagonal braces at the top and/or bottom side of the truss means a dramatic reduction in the allowable loading; a structural report per situation is required for these models.
  • Loading figures are based on Eurocode; to comply with BS 7905-2 / ANSI E1.2-2006 / CWA 15902-2, the loading data must be multiplied by 0.85.
  • Truss orientation apex-up/down. Truss 100% horizontal.
  • Fool proof assembly
  • Light weight construction
  • Arc sections can be replaced
